629909x64B Murray - Dual Stage Snow Thrower (2003)

Model: 629909x64B

Back To Assemblies

Save Part Not Listed?
product name

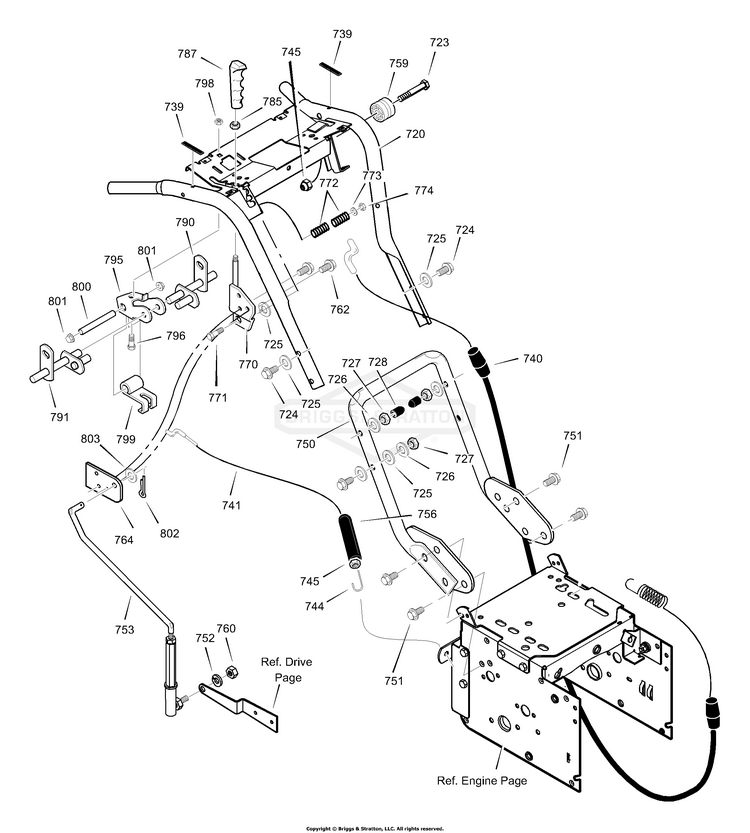

Handle Assembly

...
...
720
ASSY., HANDLE BS-1501381E717
...
723
BOLT BS-01X129
...
724
BOLT, 3/8-16 X 3" GD5 BS-5025013X24SM
...
725
WASHER BS-71072
...
726
WASHER BS-71062
...
727
NUT BS-71044
...
728
STOP,PLASTIC.375 BS-7289MA
...
739
BUMPER, RECT W/FLAT T BS-4049MA
...
740
CABLE, DRIVE BS-1501363MA
...
741
CABLE, AUGER BS-1501451MA
...
744
SPRING, AUGER CLUTCH, BS-1673MA
...
745
NUT, 1/4-20, NYLOCK BS-703232
...
750
HANDLE, LOWER BS-1501449E717
...
751
SCREW, 5/16-18 X .75 BS-703228
...
753
ASSEMBLY, ROD BS-1501465
...
759
SPOOL, CABLE BS-579860MA
...
756
BOOT, SPRING BS-308146MA
...
760
NUT.31-24 HEX BS-71042MA
...
762
SCREW, 1/4-20X0.625 BS-703054
...
764
BRACKET, CONTROL BS-1501367 YZ
...
770
BRACKET, SHIFT BS-1501375YZMA
...
771
BOLT, 3/8-16 X 3" GD5 BS-5025013X24SM
...
772
SPRING,.509 DIA X0.75 BS-50786MA
...
773
WASHER BS-71072
...
774
NUT BS-703117
...
785
NUT, HEX, 3/8-16 BS-71045
...
787
KNOB, SHIFT BS-304728MA
...
790
ROD, ASSY LH BS-578926E701
...
791
ROD, ASSY RH BS-578924E701
...
795
BRACKET, CAM BS-579002 YZ
...
796
BOLT BS-703159
...
798
NUT, HEX, 5/16-18 BS-703902
...
799
CAM LOCK BS-8417MA
...
800
PIN, SPRING PIVOT SHC BS-584673MA
...
801
NUT, PUSH ON BS-73664MA
...
802
PIN, COTTER BS-71081
...
803
WASHER BS-703350
