629111x31A Murray - Dual Stage Snow Thrower (2005)

Model: 629111x31A

Back To Assemblies

Save Part Not Listed?
product name

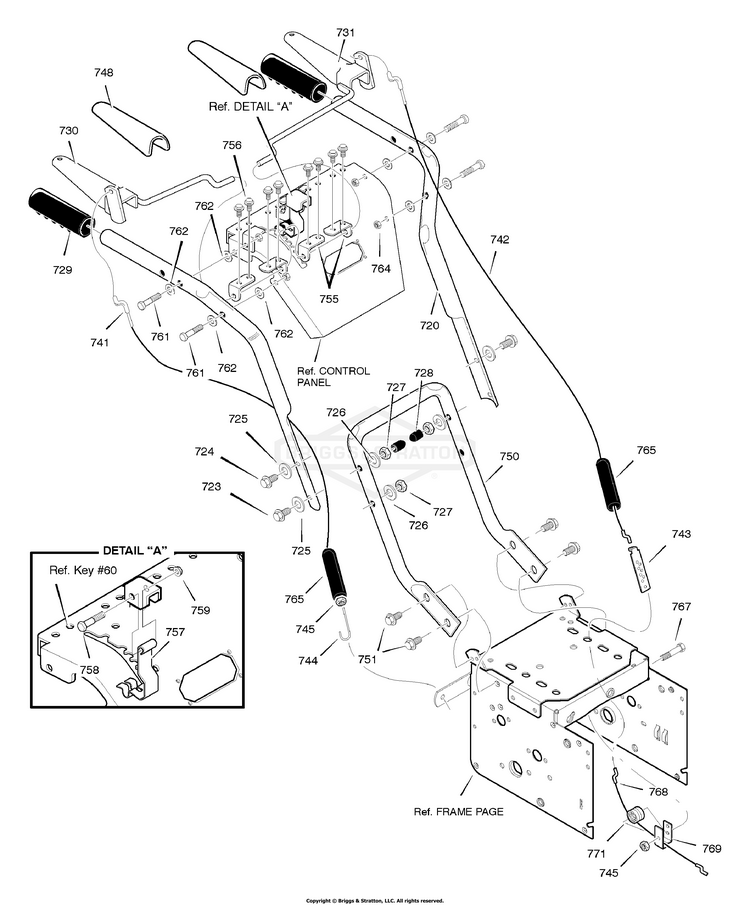

Handle Assembly

...
...
720
HANDLE, UPPER LH BS-5113E701MA
...
721
HANDLE, UPPER RH BS-5115E701MA
...
723
SCREW BS-71007
...
724
BOLT, 3/8-16 X 3" GD5 BS-5025013X24SM
...
725
WASHER, FLAT BS-71072
...
726
WASHER BS-71062
...
727
NUT, REGHEX BS-71044
...
728
STOP,PLASTIC.375 BS-7289MA
...
729
GRIP-HANDLE BS-761209MA
...
730
LEVER, ASSY CLUTCH DRIVE RH BS-760290 YZ
...
731
LEVER, ASSY CLUTCH DRIVE LH BS-760290 YZ
...
741
CABLE, AUGER CLUTCH BS-761589MA
...
742
Cable, Auger Drive BS-762259MA
...
743
BRACKET, CABLE ADJ BL BS-313441MA
...
744
SPRING, AUGER CLUTCH, BS-1673MA
...
745
NUT, 1/4-20, NYLOCK BS-703232
...
748
GRIP, CLUTCH HANDLE BS-1502124
...
750
HANDLE, LOWER BS-1740626BMYP
...
751
SCREW, 5/16-18 X .75 BS-703228
...
754
SCREW BS-70984
...
755
BRKT, ROD BS-760201 YZ
...
756
SCREW, 1/4-20X.375 BS-703583
...
757
SPRING, CAM LOCK BS-760227MA
...
758
BOLT, HEX BS-45526
...
759
NUT, HEX, 5/16-18 BS-703902
...
761
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
762
WASHER BS-703350
...
764
NUT, HEX BS-710026
...
765
BOOT, CLUTCH SPRING BS-308146MA
...
767
BOLT, 1/4-20 BS-5025010X12SM
...
768
CABLE, LOWER DRIVE 12" BS-1501122MA
...
769
BRKT, SPOOL BS-1501059YZMA
...
771
SPOOL-CABLE, AUGRT CLUTCH BS-579860MA
