629110x16B Murray - Dual Stage Snow Thrower (2004)

Model: 629110x16B

Back To Assemblies

Save Part Not Listed?
product name

Wheels

...
...
650
SHAFT, AXLE BS-MT1501563
...
652
SPRKT & HUB BS-MT1501089
...
653
SCREW, 1/4-20X1.75 BS-MT01X193
...
654
NUT, 1/4-20 HEX NYLOCK BS-MT15X145
...
655
BEARING, AXLE BS-MT1501114
...
671
FLATWASHER BS-MT712120
...
673
BUSHING, WHEEL BS-MT1501138
...
675
TIRE & RIM, RIGHT BS-MT1501824
...
676
SCREW, 1/4-20X1.75 BS-MT577015
...
677
NUT, 1/4-20 HEX NYLOCK BS-MT15X145
...
678
RING, RET BS-MT239
...
680
TIRE & RIM, LEFT BS-MT1501825
...
681
DISC, WHEEL BS-MT1501032E
...
682
SCREW BS-MT2001066
...
683
HUB ASSEMBLY, WHEEL LOCK BS-MT1501930
...
684
Spring Compression * BS-MT164X34
...
685
YZ Pin, Lock (Included with Ref. No. 683) BS-MT1501856
...
686
Knob * BS-MT1501855
...
688
SCREW BS-MT73839
...
689
NUT BS-MT15X116

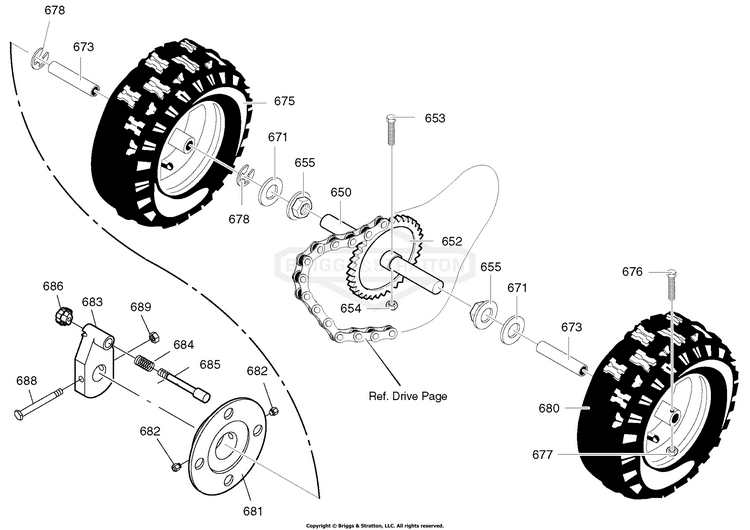

Schematic Image Zoomed
