629108x89A Murray - Dual Stage Snow Thrower (2000)

Model: 629108x89A

Back To Assemblies

Save Part Not Listed?
product name

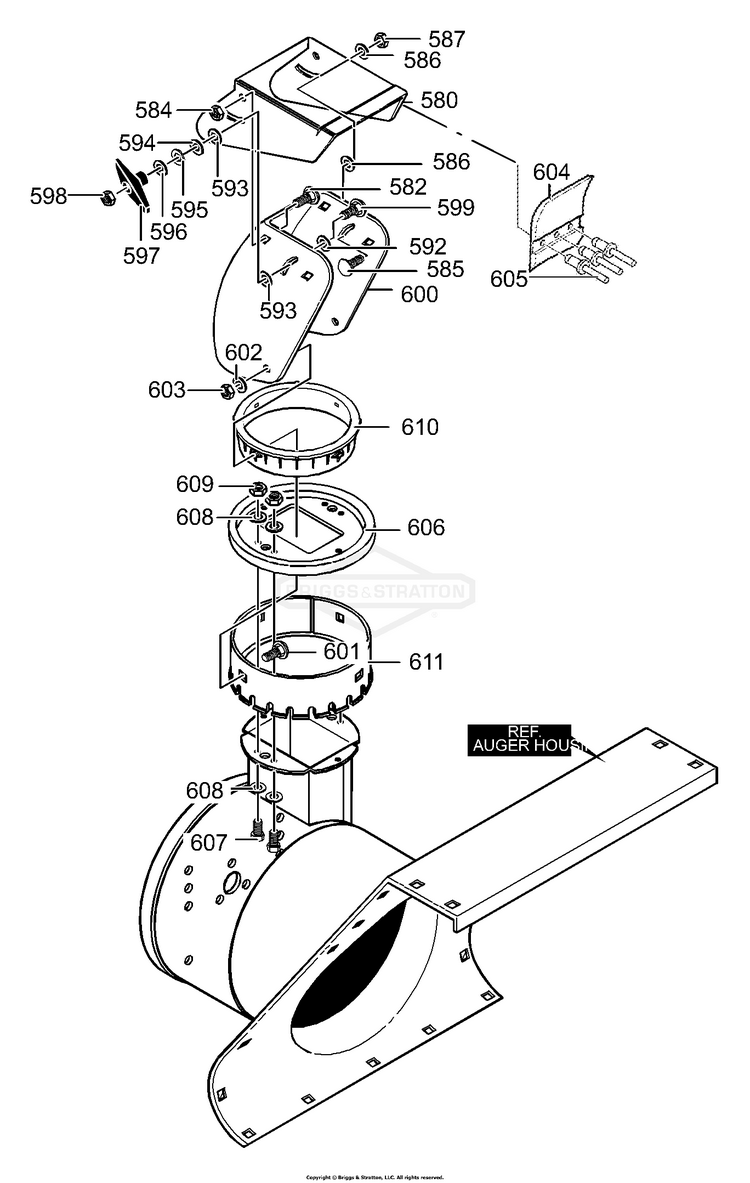

Discharge Chute Assembly

...
...
580
CHUTE, UPPER RH CONTROL BS-761070-821
...
582
SCREW, 5/16-18X .75SL BS-578088MA
...
584
NUT, HEX, 5/16-18 BS-703902
...
585
SCREW, 5/16-18X .75SL BS-578088MA
...
586
WASHER, PLASTIC .315X BS-6711MA
...
587
NUT, HEX, 5/16-18 BS-703902
...
592
WASHER, PLASTIC BS-12021MA
...
593
WASHER, PLASTIC .315X BS-6711MA
...
594
WASHER BS-703350
...
595
WASHER BS-071060
...
596
WASHER BS-703350
...
597
KNOB, WING 3.00 BS-1501260MA
...
598
HN, 5/16C GR5 YZ BS-7091511SM
...
599
BOLT BS-3316MA
...
600
ASSEMBLY, CHUTE BS-761328-821
...
601
BOLT BS-586280
...
602
WASHER BS-703350
...
603
NUT, HEX, 5/16-18 BS-703902
...
604
FLAP, C3 CHUTE INSERT BS-762322MA
...
605
RIVET,POP ALM.125X.23 BS-760987MA
...
606
COLLAR BS-585214-821
...
607
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
608
WASHER BS-703332
...
609
LOCKNUT BS-780029
...
610
RETAINER RING, INNER BS-337227MA
...
611
RETAINER RING, OUTER BS-585193MA
