629108x30A Murray - Dual Stage Snow Thrower (2003)

Model: 629108x30A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

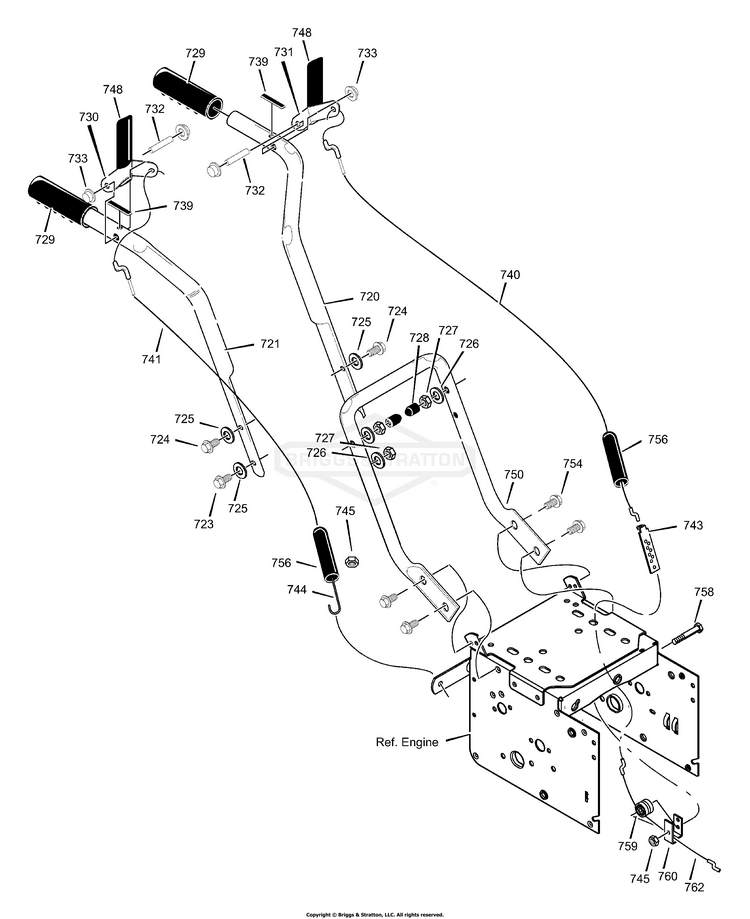

Handle Assembly

...
...
720
HANDLE, UPPER LH BS-5113E701MA
...
721
HANDLE, UPPER RH BS-5115E701MA
...
723
SCREW, 3/8-16 X 2.00 BS-71007
...
724
BOLT, 3/8-16 X 3" GD5 BS-5025013X24SM
...
725
WASHER, FLAT BS-71072
...
726
WASHER BS-71062
...
727
NUT, 3/8-16 REGHEX BS-71044
...
728
STOP,PLASTIC.375 BS-7289MA
...
729
GRIP-HANDLE FINGER BS-50792MA
...
730
LEVER, ASSY CLUTCH DRIVE RH BS-9729E701MA
...
731
LEVER, ASSY CLUTCH DRIVE LH BS-9732E701MA
...
732
PIN, PIVOT CLUTCH BS-760074MA
...
733
NUT, PUSH ON CAP .312 BS-3535MA
...
739
BUMPER, RECT W/FLAT T BS-4049MA
...
740
Cable, Auger Drive BS-762259MA
...
741
CABLE, AUGER CLUTCH BS-761590MA
...
743
BRACKET, CABLE ADJ BL BS-313441MA
...
744
SPRING, AUGER CLUTCH, BS-1673MA
...
745
NUT, 1/4-20, NYLOCK BS-703232
...
748
GRIP BS-336626
...
750
HANDLE, LOWER BS-1740626BMYP
...
754
SCREW, 5/16-18 X .75 BS-703228
...
756
BOOT, CABLE BS-308146MA
...
758
BOLT, 1/4-20 BS-5025010X12SM
...
759
SPOOL-CABLE, AUGRT CLUTCH BS-579860MA
...
760
BRKT, SPOOL BS-1501059YZMA
...
762
CABLE, LOWER DRIVE 12" BS-1501122MA
