629104x61A Murray - Dual Stage Snow Thrower (2000)

Model: 629104x61A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

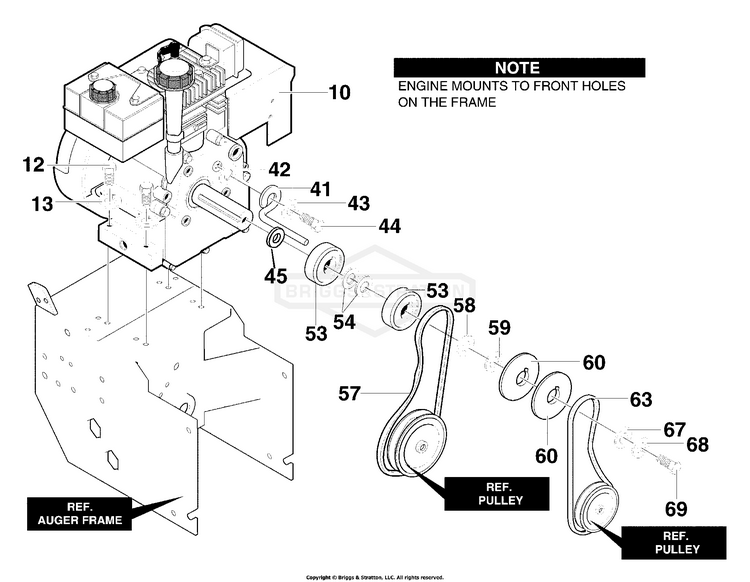

Engine Assembly

...
...
12
SCREW, 5/16-18 BS-710024
...
13
WASHER BS-120638
...
41
GUIDE, ROD BELT BS-3949MA
...
42
WASHER, PLASTIC .315X BS-6711MA
...
43
WASHER BS-120638
...
44
BOLT, HEX, 5/16-24X1 BS-703301
...
45
SPACER BS-762291MA
...
53
PULLEY, HALF BS-579854MA
...
54
WASHER, FLAT BS-579861MA
...
57
BELT, DRIVE BS-1733324SM
...
58
FLATWASHER BS-712120MA
...
59
SPACER, SLEEVE BS-586251MA
...
60
PULLEY, ENGINE BS-586253
...
63
BELT BS-585416MA
...
67
WASHER, FLAT BS-50677MA
...
68
WASHER BS-018X31MA
...
69
BOLT,HEX.37 24X1.00 Z BS-001X20MA
...
--
OWNER'S MANUAL BS-F-001119J
