627954x16A Murray - Dual Stage Snow Thrower (2005)

Model: 627954x16A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

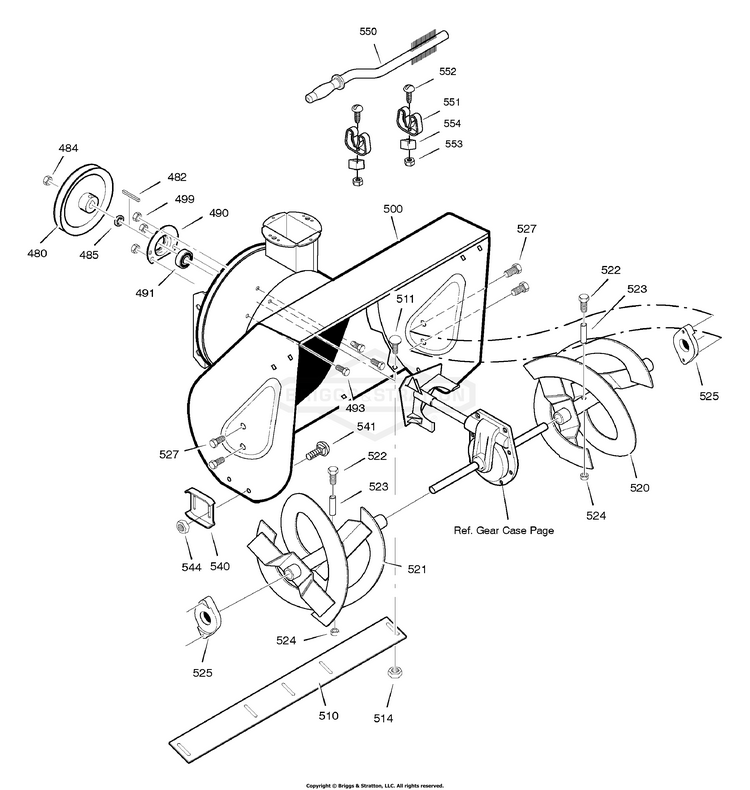

Auger Housing

...
...
480
PULLEY, 4L 8.40 OD BS-583146MA
...
482
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
484
NUT.50-20 HEX FLG SER BS-15X112MA
...
485
SPACER,FRICTION PULLE BS-1501158MA
...
490
RETAINER, BEARING BS-1756809YP
...
491
BEARING, BALL 11/16X1 BS-1705897SM
...
493
BOLT, HEX 5/16-18X .50 BS-001X92MA
...
499
NUT, 5/16-18, GR5 BS-703409
...
500
HOUSING, ASSY BS-MT1501589E511MA
...
510
BLADE,SCRAPER 27H2 MF BS-583035E701MA
...
511
BOLT, 5/16-18X.62 BS-MT001X45MA
...
514
NUT, 5/16-18, GR5 BS-703409
...
520
AUGER,27 A3 MF LH BS-760603E701MA
...
521
AUGER,27 A3 MF RH BS-760604E701MA
...
522
SCREW, 1/4-20X1.75 BS-703057
...
523
SPACER, SLEEVE BS-703058
...
524
NUT, 1/4-20 BS-703251
...
525
BRNG,AUGER SHAFT MF-L BS-53757MA
...
527
SCREW, 5/16-18 X .75 BS-703228
...
540
SKID, HEIGHT ADJUST BS-MT1502187E701MA
...
541
BOLT, 5/16-18 X .50 BS-MT908156MA
...
544
NUT, 5/16-18, GR5 BS-703409
...
550
STICK-CLEANOUT W/BRUSH BS-1736094YP
...
551
CLIP,RETAINER YZ BS-1501672MA
...
552
SCREW, 10-24 x 1 1/4 BS-704086
...
553
NUT, NYLOCK, 10-24 BS-703412
...
554
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
--
KIT,SHEAR BOLT.25-20X BS-1501216MA
