627954x16A Murray - Dual Stage Snow Thrower (2005)

Model: 627954x16A

Back To Assemblies

Save Part Not Listed?

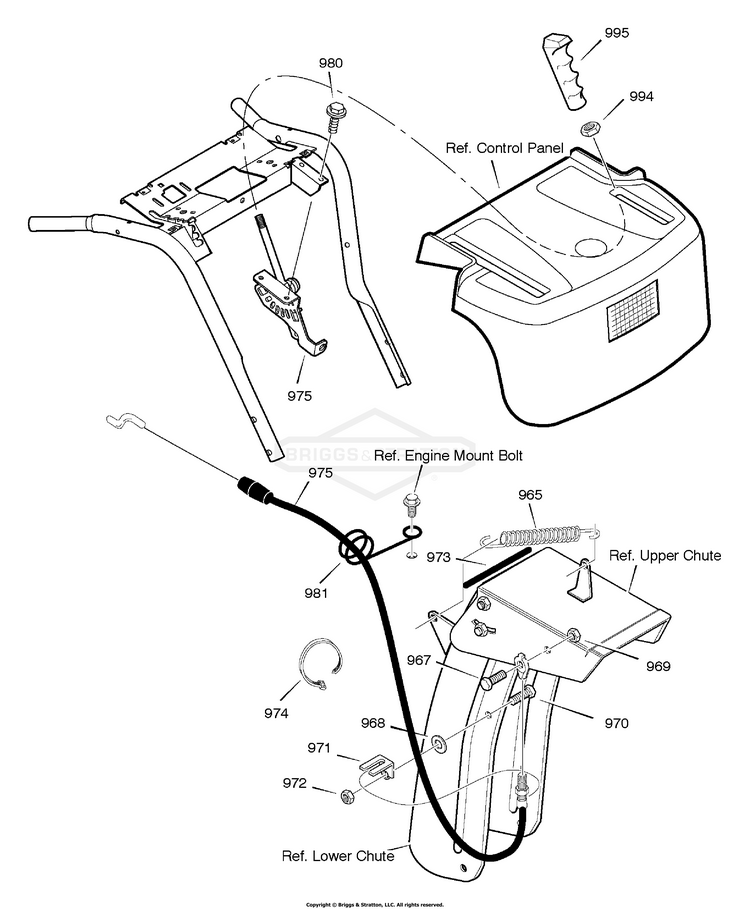

product name

Remote Control

...
...
965
TENSION SPRING BS-318468MA
...
967
BOLT-SHD.250X.312 .25 BS-310088MA
...
968
WASHER, FLAT .330X . BS-73787MA
...
969
NUT,25-20 HEX FLG CTR BS-15X143MA
...
970
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
971
BRKT,REMOTE CHUTE BS-306447YZMA
...
972
NUT.31-18 HEX CTRLK BS-71391MA
...
973
TRIM,BLACK W/ADHESIVE BS-1001221MA
...
974
TIE,STRAP-REMOVABLE BS-071372MA
...
975
ASSY, CHUTE DEF. CONTROL BS-1501393MA
...
980
SCREW, 1/4-20X.375 BS-703583
...
981
WIRE FORM,REMOTE CHUT BS-780220MA
...
994
NUT 3/8-16 HEX JAM BS-71045MA
...
995
KNOB, SHIFT BS-306689MA
