627954x16A Murray - Dual Stage Snow Thrower (2005)

Model: 627954x16A

Back To Assemblies

Save Part Not Listed?
product name

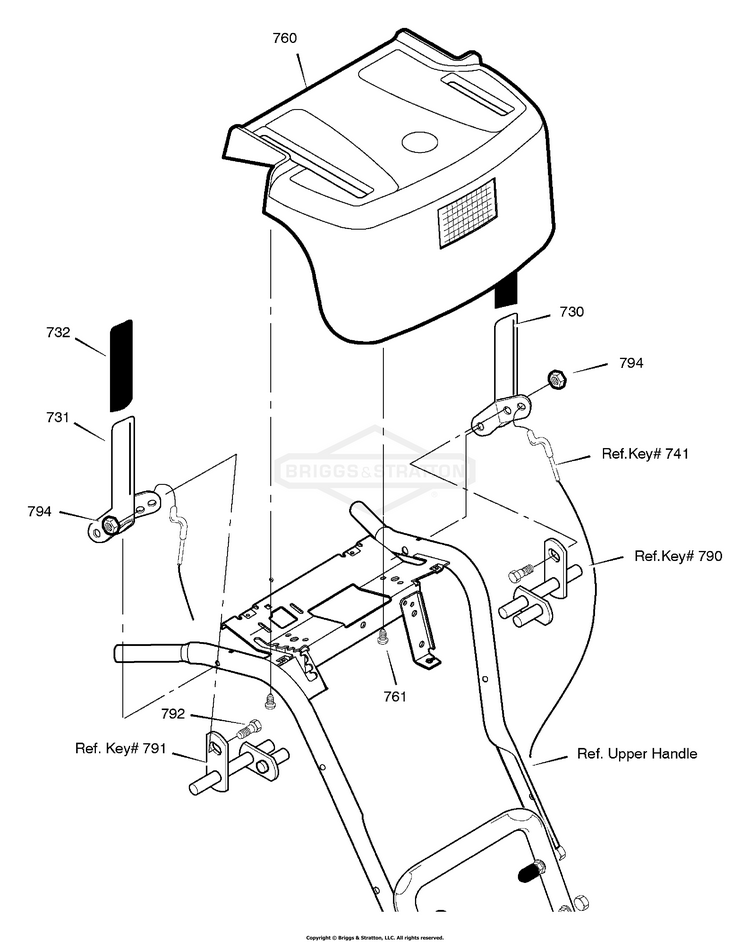

Control Panel

...
...
730
CLUTCH HANDLE LH BS-1501358E701MA
...
731
CLUTCH HANDLE RH BS-1501357E701MA
...
732
GRIP BS-337380MA
...
760
PANEL, CONTROL BS-MT1501415MA
...
761
SCREW, 10X.62 UNSL-HW BS-316042MA
...
792
BOLT, 1/4-20X .50 CAR BS-905531MA
...
794
NUT.25-20 HEX JAM NYL BS-908913MA
