627954x16A Murray - Dual Stage Snow Thrower (2005)

Model: 627954x16A

Back To Assemblies

Save Part Not Listed?
product name

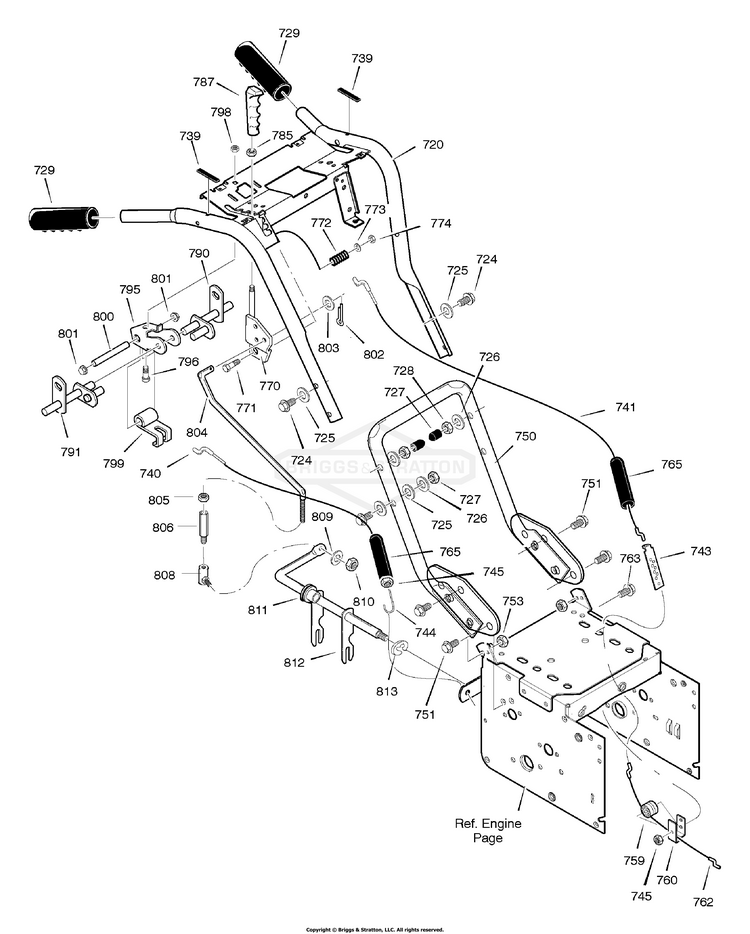

Handle Assembly

...
...
720
HNDL ASY,P5 STDDET RM BS-1501378E701MA
...
724
BOLT, 3/8-16 X 3" GD5 BS-5025013X24SM
...
725
WASHER, FLAT .406X.81 BS-71072MA
...
726
LOCKWASHER, SPLIT 3/8 BS-703454
...
727
NUT, HEX, 3/8-16 BS-703577
...
728
STOP,PLASTIC.375 BS-7289MA
...
729
GRIP, HANDLE BS-337399MA
...
739
BUMPER, RECT W/FLAT T BS-4049MA
...
740
CABLE, AUGER BS-1501451MA
...
741
CABLE, DRIVE BS-1501452MA
...
743
BRACKET, CABLE ADJ BL BS-313441MA
...
744
SPRING, AUGER CLUTCH, BS-1673MA
...
745
NUT, 1/4-20, NYLOCK BS-703232
...
750
HANDLE, LOWER BS-1740580AYP
...
751
SCREW, 5/16-18 X .75 BS-703228
...
759
CABLE SPOOL, Auger Control BS-579860MA
...
760
BRKT, SPOOL BS-1501059YZMA
...
762
CABLE, LOWER DRIVE 12" BS-1501122MA
...
763
BOLT, 1/4-20 BS-5025010X12SM
...
765
BOOT, CLUTCH SPRING BS-308146MA
...
770
BRACKET, SHIFT BS-1501570YZMA
...
771
BOLT, 3/8-16 X 1-3/4" BS-5025013X14SM
...
772
SPRING,.509 DIA X0.75 BS-50786MA
...
773
WASHER, FLAT .406X.81 BS-71072MA
...
774
NUT BS-703117
...
785
NUT 3/8-16 HEX JAM BS-71045MA
...
787
KNOB, SHIFT BS-306689MA
...
790
LF ROD, ASSY LH NOMA BS-578927MA
...
791
ROD ASY,RH NOMA SHC=W BS-578924E701MA
...
795
BRACKET, CAM BS-MT579002MA
...
796
BOLT BS-703159
...
798
NUT, HEX, 5/16-18 BS-703902
...
799
CAM LOCK BS-8417MA
...
800
PIN, SPRING PIVOT SHC BS-584673MA
...
801
NUT, PUSH ON 3/8" BS-73664MA
...
802
PIN, COTTER, 3/32X.75 BS-703312
...
803
WASHER BS-703350
...
804
ROD,SPEED P5 FDR EXT- BS-1501728MA
...
805
NUT.31-24 HEX BS-71042MA
...
806
ADAPTOR,ROD SPEED YL BS-6352MA
...
808
BALLJOINT,STEEL YZ BS-50782MA
...
809
WASHER, 5/16" LOCK BS-5025170SM
...
810
NUT.31-24 HEX BS-71042MA
...
811
BRNG FL .500ID X .88 BS-579944MA
...
812
SPEED SELECT ASY BS-1501110YZMA
...
813
RETAINER, RING 7/16 Y BS-11X30MA
