627904x89B Murray - Dual Stage Snow Thrower (2000)

Model: 627904x89B

Back To Assemblies

Save Part Not Listed?
product name

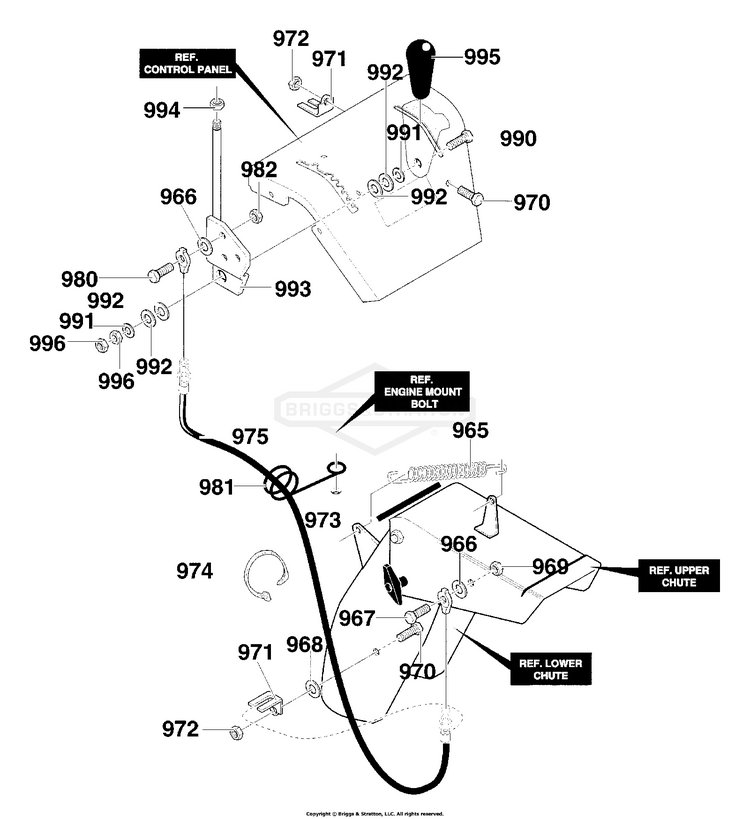

Remote Chute Assembly

...
...
965
SPRING, TENSION BS-318468MA
...
966
FLATWASHER BS-711666
...
967
BOLT-SHD.250X.312 .25 BS-310088MA
...
968
WASHER, FLAT .330X . BS-73787MA
...
969
NUT, 1/4-20 BS-302635
...
970
SCREW, 5/16-18 x 0.75 BS-313676
...
971
BRACKET, CABLE CHUTE BS-PER - 780066
...
972
NUT, 5/16-18 BS-1498
...
973
TRIM 4.50 IN. BS-095105
...
974
CABLE TIE BS-760113MA
...
975
CABLE, CHUTE CONTROL RH BS-761131MA
...
980
BOLT-SHD.250X.312 .25 BS-310088MA
...
981
WIRE FORM,REMOTE CHUT BS-780220MA
...
982
NUT, 1/4-20 BS-302635
...
990
SCREW 3/8-16X1.75 BS-4058
...
991
FLATWASHER BS-71072
...
992
WASHER, SPRING BS-4051MA
...
993
HANDLE ASSY., SPEED CONTROL BS-85031
...
994
NUT, 3/8-16 BS-780072MA
...
995
HANDLE 3/8-16 BS-304728MA
...
996
NUT BS-703117
