627858x43A Murray - Dual Stage Snow Thrower (2003)

Model: 627858x43A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

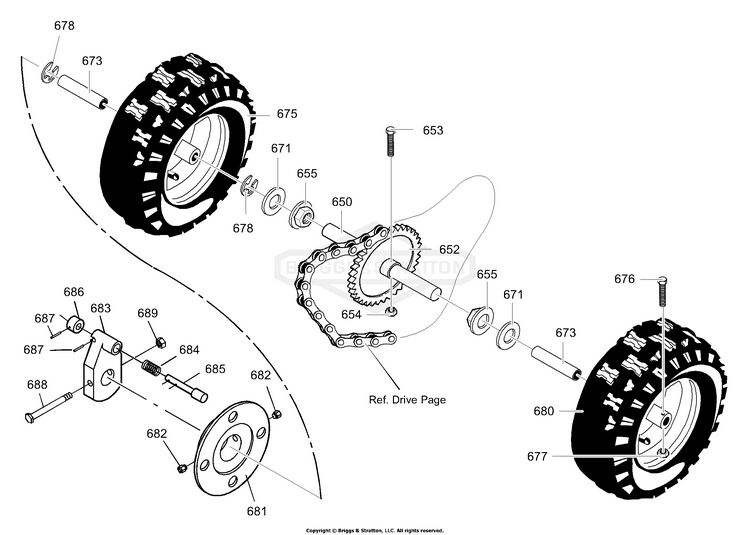

Wheels

...
...
650
SHAFT, AXLE BS-1501563 YZ
...
652
SPROCKET,AXLE WF BS-1501089MA
...
653
BOLT, HEX,1/4-20X1.75 BS-704212
...
654
NUT, 1/4-20, NYLOCK BS-703232
...
655
BEARING,AXLE BS-1501114MA
...
671
FLATWASHER BS-712120MA
...
673
BUSHING, WHEEL BS-1501138MA
...
675
TIRE & RIM, RIGHT BS-580362MA
...
676
SCREW, SHR 1/4-20X1.7 BS-577015MA
...
677
NUT, 1/4-20, NYLOCK BS-703232
...
678
RETAINER, Ring BS-1657528SM
...
680
TIRE & RIM, LEFT BS-580362MA
...
681
DISC,WHEEL LOCK ECOAT BS-1501032EMA
...
682
SCREW BS-2001066MA
...
683
HUB, WHEEL LOCK BS-1501546
...
684
SPRING, COMPRESSION BS-164X34MA
...
685
PIN, LOCK BS-1501033 YZ
...
686
KNOB,STEEL KNURL .25 BS-1501034MA
...
687
PIN BS-032X79
...
688
SCREW BS-73839MA
...
689
NUT, 1/4-20, NYLOCK BS-703232
