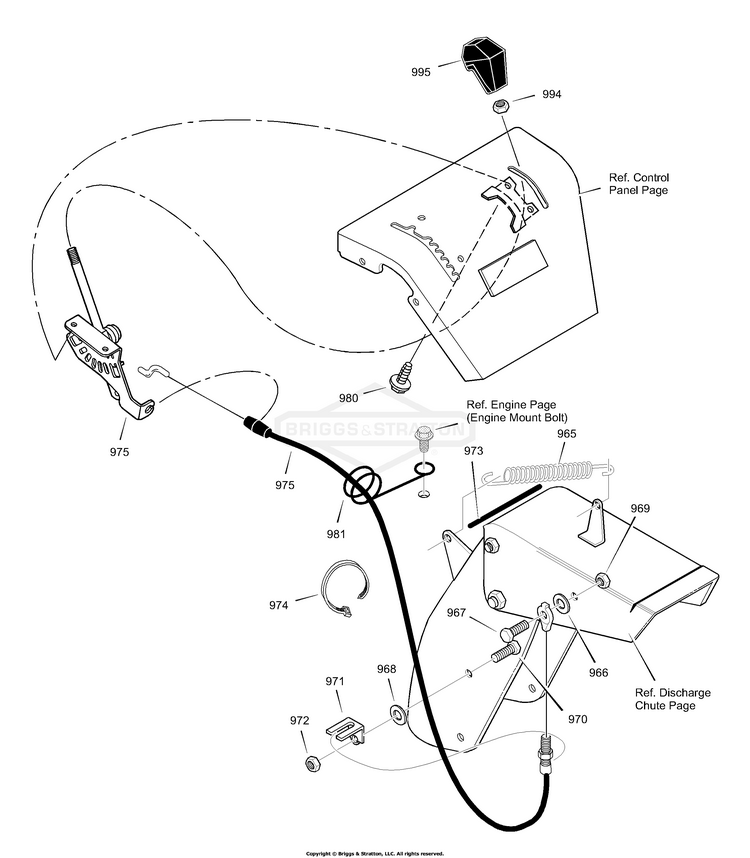

627809x5A Murray - Dual Stage Snow Thrower (2002)

Model: 627809x5A

Back To Assemblies

Save Part Not Listed?
product name

Remote Control

...
...
965
TENSION SPRING BS-318468MA
...
966
FLATWASHER BS-711666
...
967
BOLT-SHD.250X.312 .25 BS-310088MA
...
968
WASHER, FLAT .330X . BS-73787MA
...
969
NUT BS-302635
...
970
SCREW 5/16-18 X .75 BS-313676
...
971
BRACKET, CABLE CHUTE BS-306447 YZ
...
972
IDLER SUPT ASSY 22SD BS-1101253MA
...
973
TRIM STRIP, GREY BS-095105
...
974
TIE, CABLE BS-760113MA
...
975
ASSY, CHUTE DEF. CONTROL BS-1501393MA
...
980
SCREW, 1/4-20X.375 BS-703583
...
981
WIRE FORM,REMOTE CHUT BS-780220MA
...
994
NUT BS-71044
...
995
KNOB, SHIFT (GREY) BS-304728MA
