627809x54D Murray - Dual Stage Snow Thrower (2003)

Model: 627809x54D

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

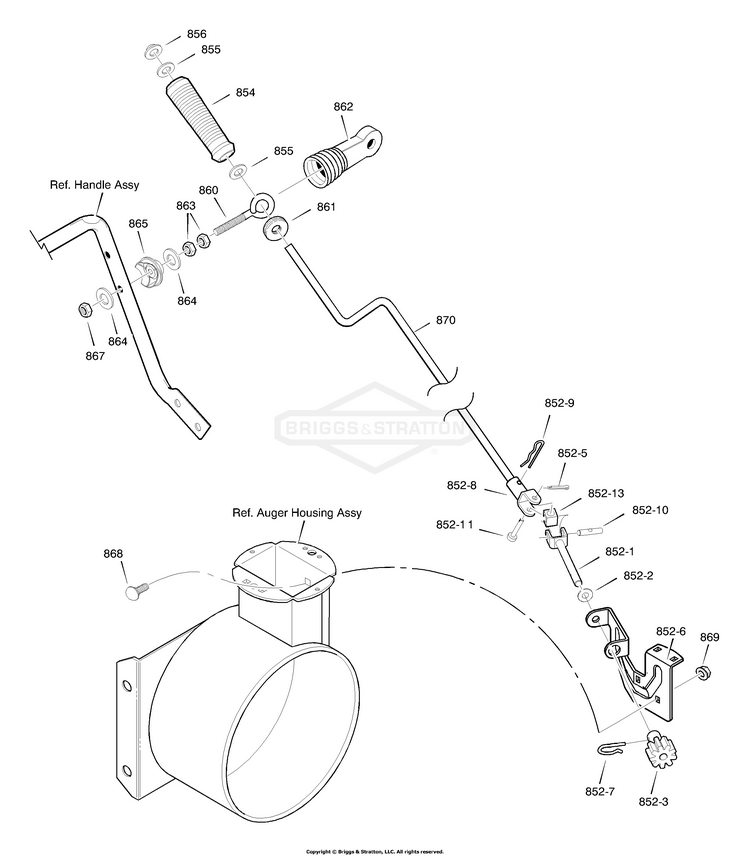

Popular Parts

Chute Rod

...
...
852-1
ASSEMBLY, YOKE & ROD BS-1501309 YZ
...
852-2
WASHER, CURVED SPRING BS-313431MA
...
852-3
GEAR,9 TOOTH 8DP BS-1501067MA
...
852-5
PIN, COTTER .06X .50 BS-579493MA
...
852-6
BRKT,CHUTE GEAR BS-1501306E701MA
...
852-7
PIN-HAIR, CHUTE GEAR BS-1501293MA
...
852-8
YOKE ADAPTER ASY BS-1501075YZMA
...
852-9
PIN, 3/32 X 1.6 BS-703300
...
852-10
PIN,UNIV JOINT 3/8X1. BS-578060MA
...
852-11
LF PIN, CLEVIS .25DX BS-578309MA
...
852-13
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
854
KNOB, SLEEVE BS-307399MA
...
855
WASHER, FLAT .39 X .7 BS-309312MA
...
856
NUT, PUSH ON 3/8" BS-73664MA
...
860
EYEBOLT.38-16X6.00 .6 BS-581618MA
...
861
GROMMET, Eyelet BS-148MA
...
862
BOOT, Eye Bolt BS-1501457MA
...
863
NUT, 3/8-16 HEXJAM BS-71045
...
864
FLATWASHER .406X.81X.066 BS-71072
...
865
ADAPTER, BOOT BS-309344MA
...
867
NUT BS-703117
...
868
BOLT, 1/4-20X1, GR5 BS-703584
...
869
NUT, 1/4-20, NYLOCK BS-703232
...
870
CRANK,CHUTE TURN BS-703120
