627809x54D Murray - Dual Stage Snow Thrower (2003)

Model: 627809x54D

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

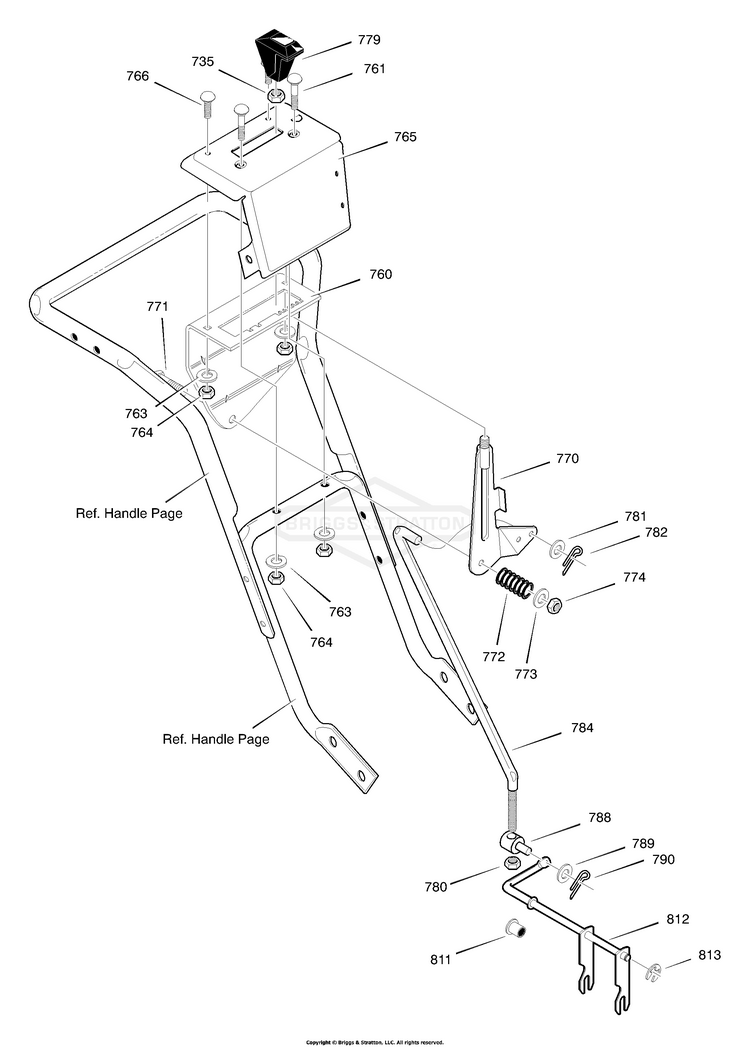

Control Panel

...
...
735
NUT, 3/8-16 HEX JAM BS-71045
...
760
BRACKET, SHIFT CONTROL BS-308905E717
...
761
CARR. BOLT, 1/4-20 X 2 BS-762148
...
763
WASHER BS-71059
...
764
NUT BS-703127
...
765
CONTROL PANEL BS-761973E245
...
766
CARR. BOLT, 1/4-20 X 0.63 BS-3809
...
770
SHIFT LEVER ASSY BS-305260E701MA
...
771
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
772
SPRING,.509 DIA X0.75 BS-50786MA
...
773
WASHER BS-703350
...
774
NUT, HEX, 5/16-18 BS-703902
...
779
GRIP BS-304728MA
...
780
NUT.31-24 HEX BS-71042MA
...
781
WASHER BS-703350
...
782
PIN, COTTER BS-71081
...
784
ROD, SPEED CONTROL BS-761668MA
...
788
NUT, TRUNNION 5/16-24 BS-584593 YZ
...
789
WASHER BS-703350
...
790
PIN, COTTER BS-71081
...
811
BRNG FL .500ID X .88 BS-579944MA
...
812
SPEED SELECT ASY BS-1501110YZMA
...
813
RETAINER, RING 7/16 Y BS-11X30MA
