627809x54B Murray - Dual Stage Snow Thrower (2001)

Model: 627809x54B

Back To Assemblies

Save Part Not Listed?
product name

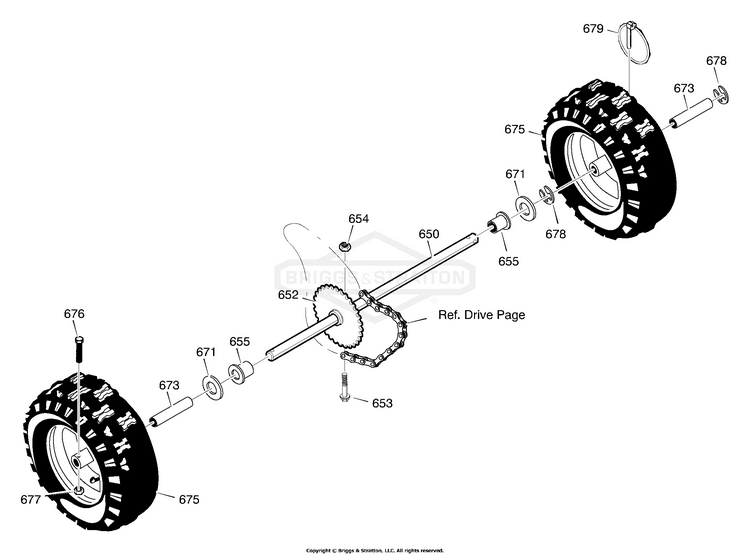

Wheels

...
...
650
SHAFT, AXLE BS-1501104MA
...
652
SPROCKET,AXLE WF BS-1501089MA
...
653
SCREW, 1/4-20X2.25 BS-01X186MA
...
654
NUT, 1/4-20 HEX NYLOCK BS-780029
...
655
BEARING,AXLE BS-1501114MA
...
671
FLATWASHER BS-712120MA
...
673
BUSHING, WHEEL BS-1501138MA
...
675
TIRE & RIM BS-580362MA
...
676
SCREW, SHR 1/4-20X1.7 BS-577015MA
...
677
NUT, 1/4-20 HEX NYLOCK BS-780029
...
678
RETAINER, Ring BS-1657528SM
...
679
KLIK PIN ASSY BS-500016MA
