627809x54B Murray - Dual Stage Snow Thrower (2001)

Model: 627809x54B

Back To Assemblies

Save Part Not Listed?
product name

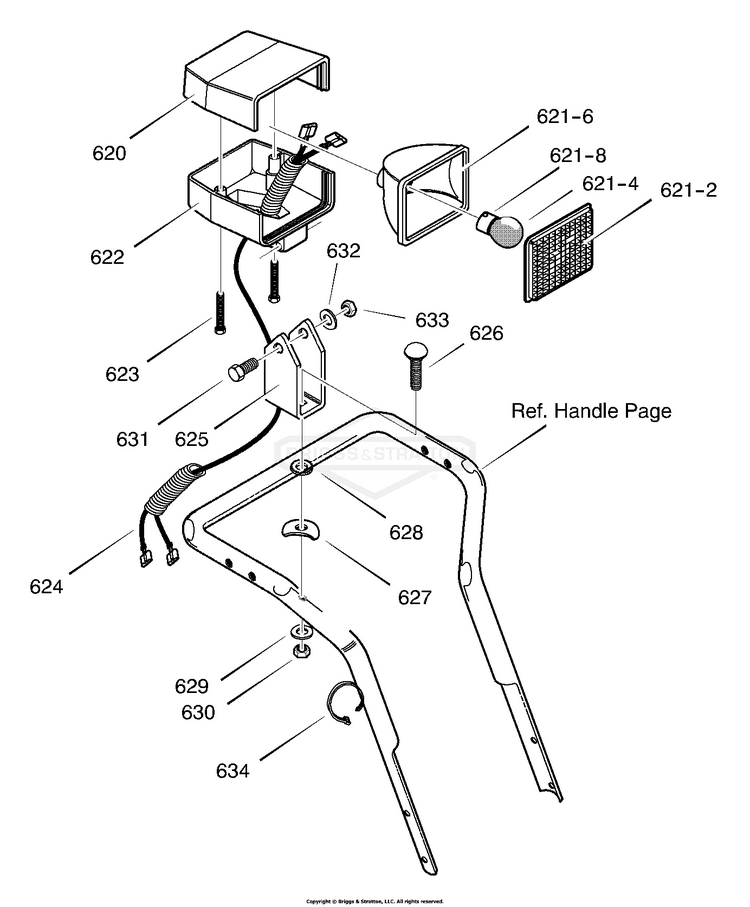

Headlight

...
...
620
HOUSING, HEADLIGHT UPPER BS-307395MA
...
621
HEADLIGHT, ASSY BS-581575MA
...
621-2
LENS BS-309789
...
621-4
BULB 1156 BS-581576
...
621-6
BACK, METALIZED BS-309792
...
621-8
SOCKET BS-309793
...
622
HOUSING, HEADLIGHT LOWER BS-580530
...
623
SCREW, #8X1.75 BS-307781MA
...
624
WIRING HARNESS BS-307767MA
...
625
BRACKET, HEADLIGHT BS-4029 YZ
...
626
BOLT, 5/16-18X2.25 CARR. BS-580846
...
627
WASHER, SADDLE BS-580527MA
...
628
WASHER, EXLK .32X.60X.040 BS-71061
...
629
WASHER, SPTLK .31X.58X.08 BS-071060
...
630
HN, 5/16C GR5 YZ BS-7091511SM
...
631
SCREW, 5/16-18 x 2.00 BS-235MA
...
632
WASHER, SPTLK BS-071060
...
633
HN, 5/16C GR5 YZ BS-7091511SM
...
634
TIE, CABLE BS-57444
