627809x54B Murray - Dual Stage Snow Thrower (2001)

Model: 627809x54B

Back To Assemblies

Save Part Not Listed?
product name

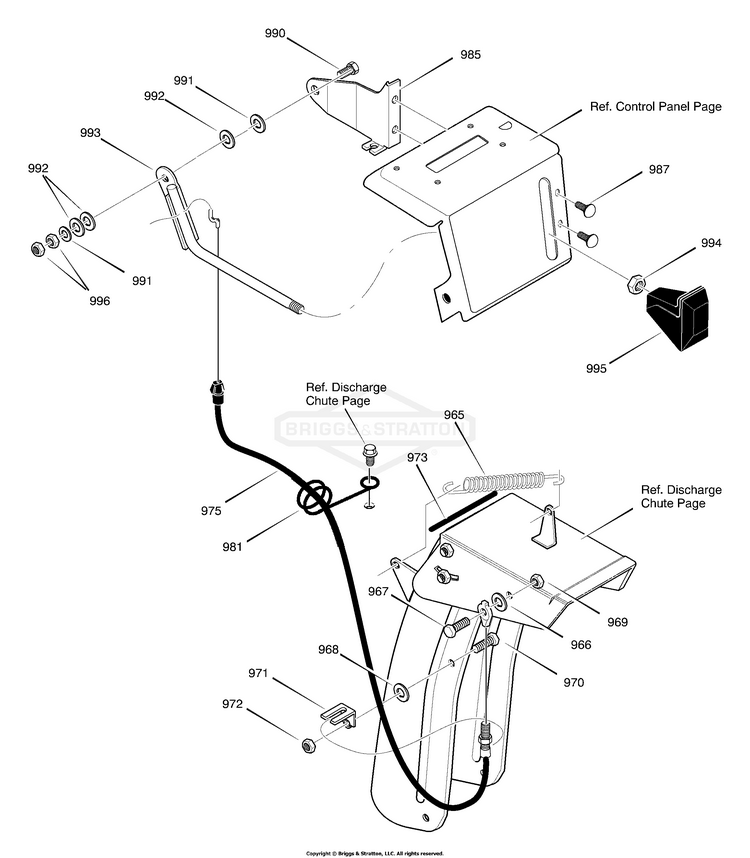

Remote Chute Control

...
...
965
TENSION SPRING BS-318468MA
...
966
FLATWASHER BS-711666
...
967
BOLT-SHD.250X.312 .25 BS-310088MA
...
968
WASHER, FLAT .330X . BS-73787MA
...
969
NUT BS-302635
...
970
SCREW BS-313676
...
971
BRACKET, CABLE CHUTE BS-306447 YZ
...
972
IDLER SUPT ASSY 22SD BS-1101253MA
...
973
TRIM STRIP, GREY BS-095105
...
975
CABLE, CHUTE DEFLECTOR BS-761775MA
...
981
WIRE FORM,REMOTE CHUT BS-780220MA
...
985
BRACKET, SNAP-IN REMOTE BS-761669E717
...
987
SCREW, 1/4-20X0.625 BS-703054
...
990
SCREW BS-4058
...
991
WASHER, FLAT BS-71072
...
992
WASHER, SPRING BS-4051MA
...
993
HANDLE, ASSY BS-904056E717
...
994
NUT BS-71045
...
995
KNOB, SHIFT BS-304728MA
...
996
NUT BS-703117
