627809x54A Murray - Dual Stage Snow Thrower (2000)

Model: 627809x54A

Back To Assemblies

Save Part Not Listed?
product name

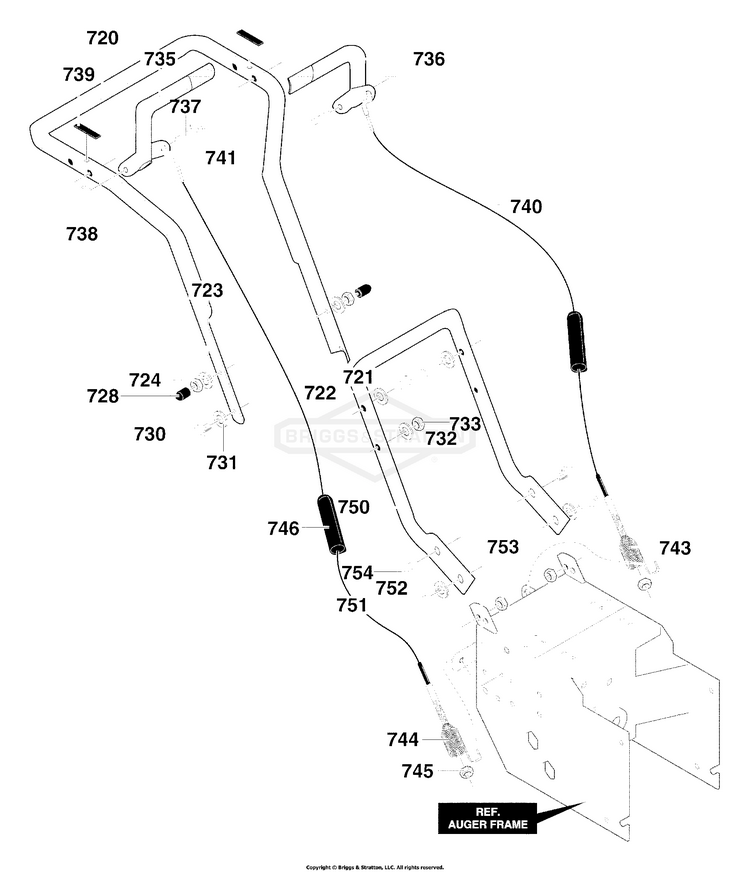

Handle Assembly

...
...
720
HANDLE, UPPER LOOP BS-310614-821
...
721
BOLT, 3/8-16 X 3" GD5 BS-5025013X24SM
...
722
WASHER, FLAT BS-71072
...
723
WASHER BS-018X31MA
...
724
NUT, 3/8-16 BS-780072MA
...
728
STOP,PLASTIC.375 BS-7289MA
...
730
SCREW, 3/8-16 x 2.00 BS-71007
...
731
WASHER, FLAT BS-71072
...
732
WASHER BS-018X31MA
...
733
NUT, 3/8-16 BS-780072MA
...
735
HANDLE, RIGHT BS-303914
...
736
HANDLE, LEFT BS-304914MA
...
737
PIN, PIVOT CLUTCH BS-760074MA
...
738
NUT, PUSH ON CAP .312 BS-3535MA
...
739
BUMPER, RECT W/FLAT T BS-4049MA
...
740
CABLE, CLUTCH 28.44L BS-1579MA
...
741
CABLE, AUGER CLUTCH 25.5 BS-761589MA
...
743
TENSION SPRING BS-579869MA
...
744
SPRING, AUGER CLUTCH, BS-1673MA
...
745
NUT, 1/4-20 BS-780029
...
746
BOOT, CLUTCH SPRING BS-308146MA
...
750
HANDLE, LOWER BS-5543-821
...
751
SCREW, 5/16-18 x 0.75 BS-70984
...
752
WASHER BS-120638
...
753
NUT, 5/16-18 BS-1498
...
754
SCREW, 5/16-18 x 0.75 BS-782967MA
