627808x61A Murray - Dual Stage Snow Thrower (2000)

Model: 627808x61A

Back To Assemblies

Save Part Not Listed?
product name

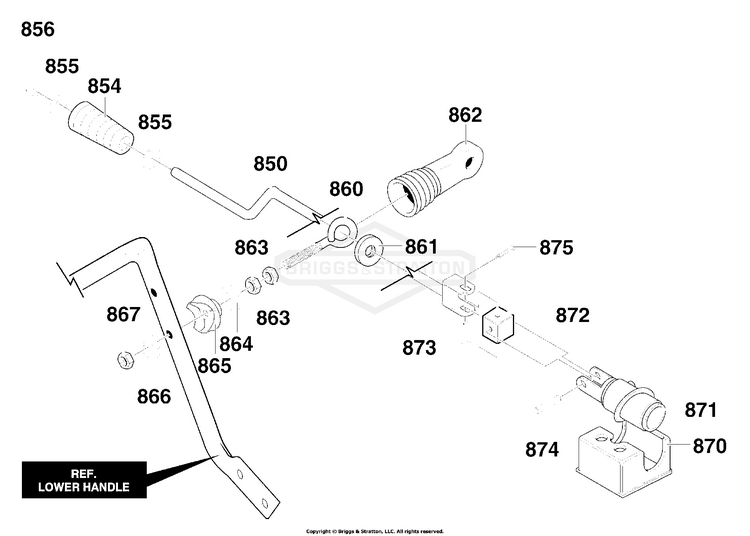

Chute Rod Assembly

...
...
850
CRANK, ASSY BS-585426MA
...
854
HANDLE BS-307399MA
...
855
WASHER, FLAT .39 X .7 BS-309312MA
...
856
RING, RETAINER BS-578159MA
...
860
EYEBOLT.38-16X6.00 .6 BS-581618MA
...
861
GROMMET, Eyelet BS-148MA
...
862
BOOT, Eye Bolt BS-1501457MA
...
863
NUT, 3/8-16 HEXJAM BS-71045
...
864
WASHER, FLAT .406X .81X.066 BS-71072
...
865
ADAPTOR, BOOT TO HANDLE BS-309344MA
...
866
WASHER, FLAT .406X .81X.066 BS-71072
...
867
NUT BS-703117
...
870
BRKT, WORM BS-585195MA
...
871
WORM, GEAR CHUTE BS-585196MA
...
872
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
873
LF PIN, CLEVIS .25DX BS-578309MA
...
874
PIN,UNIV JOINT 3/8X1. BS-578060MA
...
875
PIN, COTTER .06X .50 BS-579493MA
