627808x5A Murray - Dual Stage Snow Thrower (2003)

Model: 627808x5A

Back To Assemblies

Save Part Not Listed?
product name

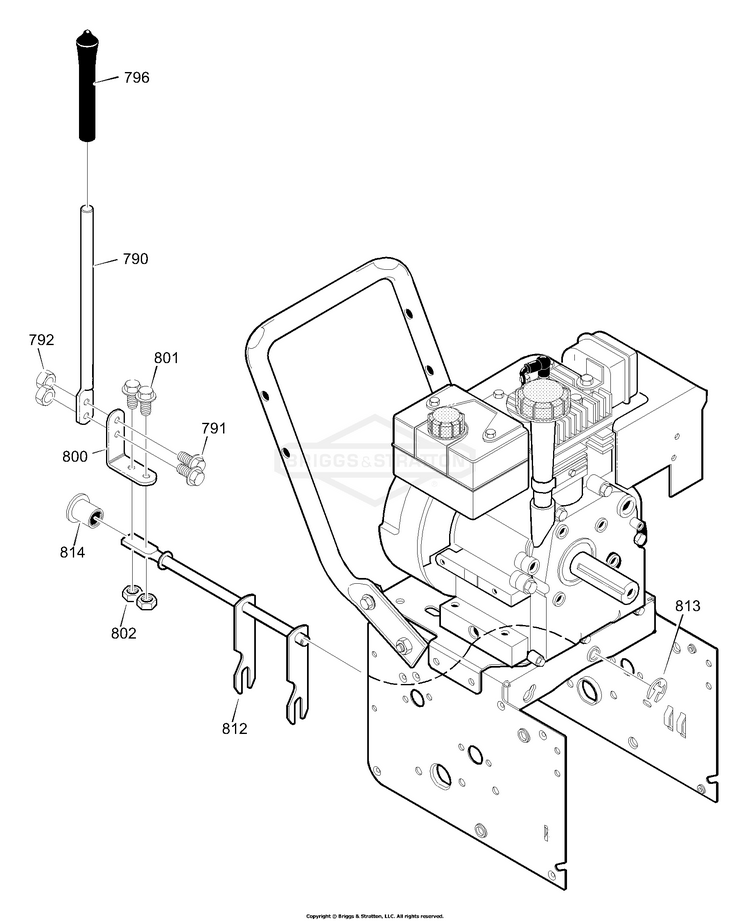

Shift Yoke

...
...
790
ROD,SHIFT P1P2P3H .44 BS-336702E701MA
...
791
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
792
NUT, 1/4-20 BS-73826
...
796
KNOB, SLIP PLASTISOL BS-331624MA
...
800
LEVER,SPRING SHIFT BS-760564MA
...
801
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
802
NUT, 1/4-20 BS-73826
...
812
ROD ASSY., SPEED SELECT BS-1501085 YZ
...
813
RETAINER, RING 7/16 Y BS-11X30MA
...
814
BRNG FL .500ID X .88 BS-579944MA
