627805x85B Murray - Dual Stage Snow Thrower (2000)

Model: 627805x85B

Back To Assemblies

Save Part Not Listed?
product name

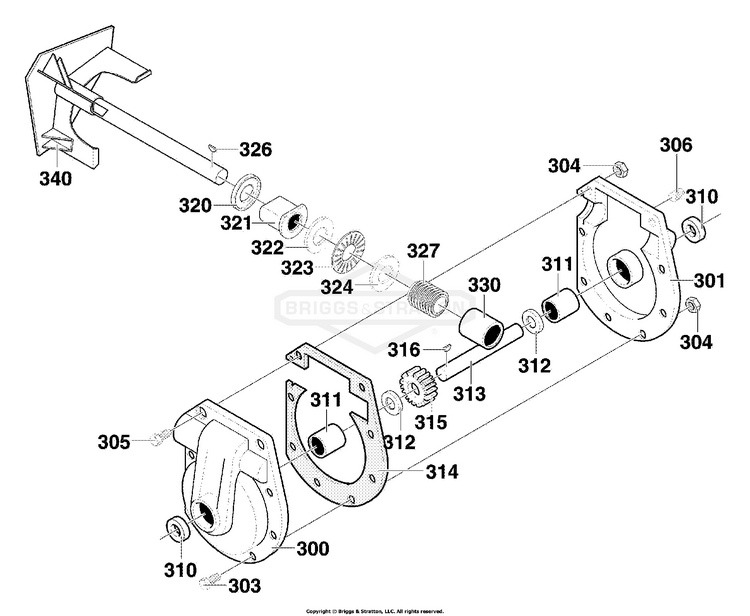

Gear Case Assembly

...
...
300
CASE,GEAR RH 12AUG/10 BS-896MA
...
301
CASE, GEAR LH 12"AUG/ BS-895MA
...
303
BOLT, HEX, 5/16-24X1 BS-703301
...
304
NUT BS-703123
...
305
CAPSCREW, 5/16-24X1.5 BS-703568
...
306
PLUG, PIPE BS-313872
...
310
SEAL, OIL CR 530552 BS-780151MA
...
311
BRNG,SLEV 1X1.25X1 BS-53743MA
...
312
WASHER, FLAT 1.00 x 1.54 x .09 BS-313871
...
313
SHAFT,AUGER OUT 27 H1 BS-760529MA
...
314
GASKET, GEAR BOX BS-897MA
...
315
GEAR, WORM BS-1752500YP
...
316
KEY, WOODRUFF,.25X.75 BS-704280
...
320
RING, QUAD BS-313914
...
321
BRNG, FL .753IDX1.128 BS-583126MA
...
322
WASHER, FLAT .752X1. BS-48275MA
...
323
BEARING, ROLL BS-313828
...
324
WASHER, FLAT .752X1. BS-48275MA
...
326
KEY, HI-PRO 606 .75D BS-50795MA
...
327
GEAR, WORM BS-313862
...
330
BEARING BS-53731MA
...
340
IMPELLER BS-761692-853
