627805x85B Murray - Dual Stage Snow Thrower (2000)

Model: 627805x85B

Back To Assemblies

Save Part Not Listed?
product name

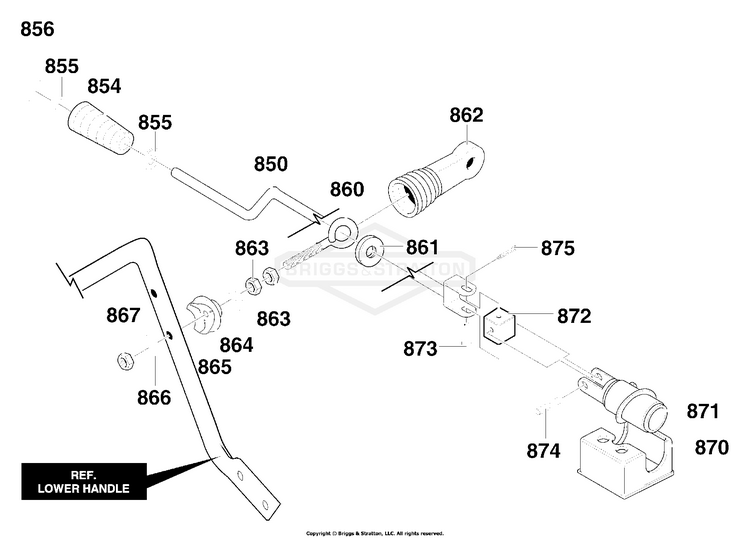

Chute Rod

...
...
850
CRANK, ASSY CHUTE BS-585426MA
...
854
KNOB, SLEEVE STD BLK BS-51443MA
...
855
WASHER, FLAT .39 X .7 BS-309312MA
...
856
E RING BS-73664MA
...
860
EYEBOLT.38-16X6.00 .6 BS-581618MA
...
861
GROMMET, Eyelet BS-148MA
...
862
BOOT, Eye Bolt BS-1501457MA
...
863
NUT, 3/8-16 HEXJAM BS-124829
...
864
FLATWASHER .406X.81X.066 BS-71072
...
865
ADAPTER, BOOT TO HANDLE BS-309344MA
...
866
FLATWASHER .406X.81X.066 BS-71072
...
867
NUT BS-703117
...
870
BRACKET, WORM MTG BS-585195MA
...
871
WORM, GEAR CHUTE ROTATION BS-585196MA
...
872
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
873
LF PIN, CLEVIS .25DX BS-578309MA
...
874
PIN,UNIV JOINT 3/8X1. BS-578060MA
...
875
PIN, COTTER .06X .50 BS-579493MA
