627805x85B Murray - Dual Stage Snow Thrower (2000)

Model: 627805x85B

Back To Assemblies

Save Part Not Listed?
product name

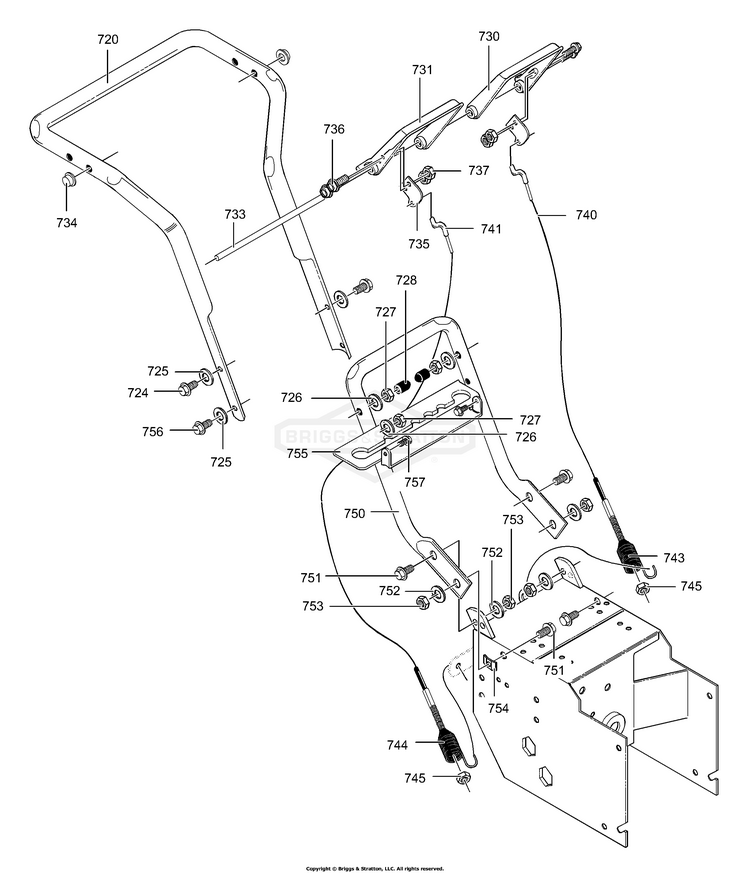

Handle Assembly

...
...
720
HANDLE BS-321835-853
...
724
CAPSCREW,5/16-18X2.75 BS-703869
...
725
WASHER, FLAT BS-120393
...
726
WASHER BS-120638
...
727
HN, 5/16C GR5 YZ BS-7091511SM
...
728
PLASTIC-STOP BS-11261MA
...
730
LEVER,CTRL P1 LH BLK BS-302557MA
...
731
LEVER,CTRL P1 RH BLK BS-302558MA
...
733
ROD, PIVOT HANDLE BS-12621
...
734
NUT, PUSH ON CAP .312 BS-3535MA
...
735
PLATE, CABLE PIVOT BS-302620-853
...
736
SCREW BS-303108
...
737
NUT BS-73826
...
740
CABLE, CLUTCH BS-1579MA
...
741
CABLE, AUGER CLUTCH BS-761590MA
...
743
SPRING, TENSION BS-579869MA
...
744
SPRING, AUGER CLUTCH, BS-1673MA
...
745
LOCKNUT BS-780029
...
755
BRACKET, GEAR SELECTOR BS-337407-853
...
757
SCREW BS-300303MA
...
750
HANDLE, LOWER BS-339541-853
...
751
SCREW BS-313053
...
752
WASHER BS-120638
...
753
HN, 5/16C GR5 YZ BS-7091511SM
