627804x6B Murray - Dual Stage Snow Thrower (2000)

Model: 627804x6B

Back To Assemblies

Save Part Not Listed?
product name

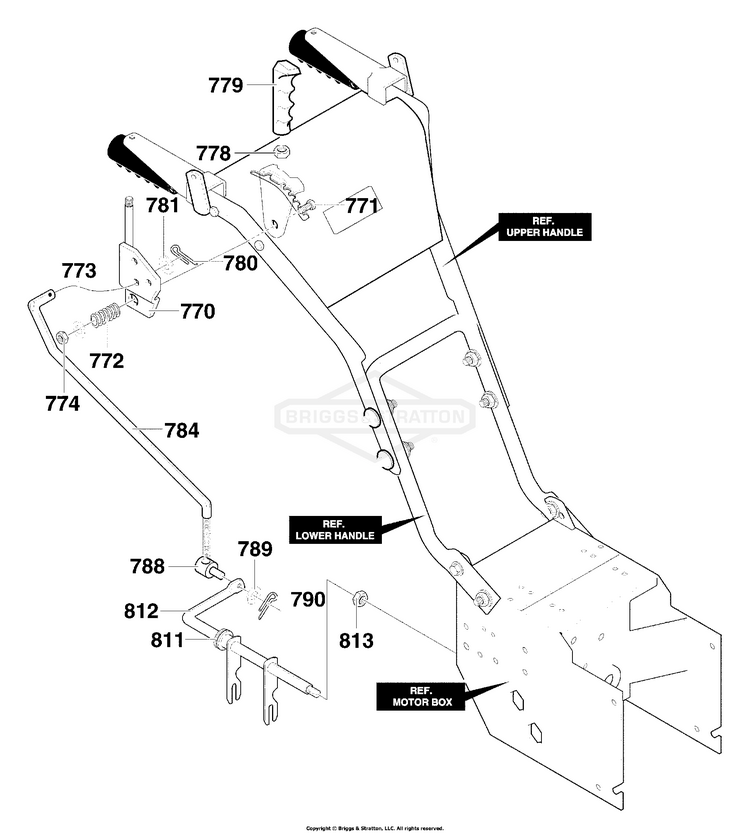

Shift Yoke Assembly

...
...
770
HANDLE ASSY SPD CTRL BS-85031
...
771
SCREW 3/8-16X2.00 BS-71007
...
772
SPRING BS-313842
...
773
FLATWASHER BS-71072
...
774
NUT BS-703117
...
778
NUT, 3/8-16 REGHEX BS-780072MA
...
779
HANDLE 3/8-16 BS-306689MA
...
780
PIN, COTTER, 3/32X.75 BS-703312
...
781
FLATWASHER BS-120393
...
784
ROD, SPEED CONTROL BS-330635MA
...
788
NUT, TRUNNION BS-584593
...
789
FLATWASHER BS-120393
...
790
PIN, COTTER, 3/32X.75 BS-703312
...
811
BRNG FL .500ID X .88 BS-579944MA
...
812
ROD, ASSY YOKE BS-337436
...
813
NUT, 3/8-16 HXCTRLK BS-071111
