627802x85A Murray - Dual Stage Snow Thrower (2003)

Model: 627802x85A

Back To Assemblies

Save Part Not Listed?
product name

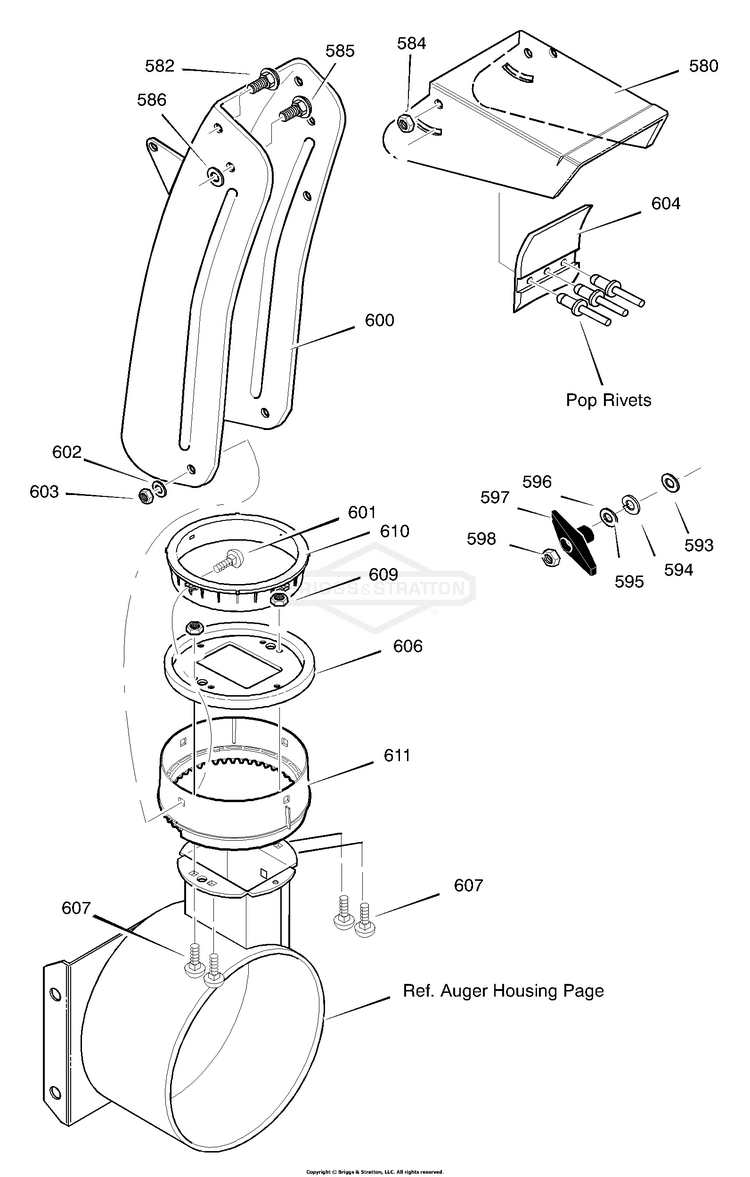

Discharge Chute

...
...
580
CHUTE, UPPER W/REMOTE BS-761070E701
...
582
SCREW, 5/16-18X .75SL BS-578088MA
...
584
NUT, HEX, 5/16-18 BS-703902
...
585
SCREW, 5/16-18X .75SL BS-578088MA
...
593
WASHER, PLASTIC .315X BS-6711MA
...
594
WASHER BS-703350
...
595
M-BAG,2LBG.38 K25 N BS-1501670MA
...
596
WASHER BS-703350
...
597
KNOB, WING 3.00 BS-1501260MA
...
598
HN, 5/16C GR5 YZ BS-7091511SM
...
600
CHUTE, LOWER / GUARD BS-761328E701
...
601
BOLT BS-02X100
...
602
WASHER BS-703350
...
603
NUT, HEX, 5/16-18 BS-703902
...
604
FLAP, C3 CHUTE INSERT BS-762322MA
...
606
CHUTE COLLAR BS-585214 YZ
...
607
BOLT, 1/4-20 X 3/4 BS-703440
...
609
NUT, 1/4-20, NYLOCK BS-703232
...
610
RETAINER, RING INNER BS-337227MA
...
611
RING,OUTER CHUTE BS-1501282MA
