627801x85A Murray - Single Stage Snow Thrower (2003)

Model: 627801x85A

Back To Assemblies

Save Part Not Listed?
product name

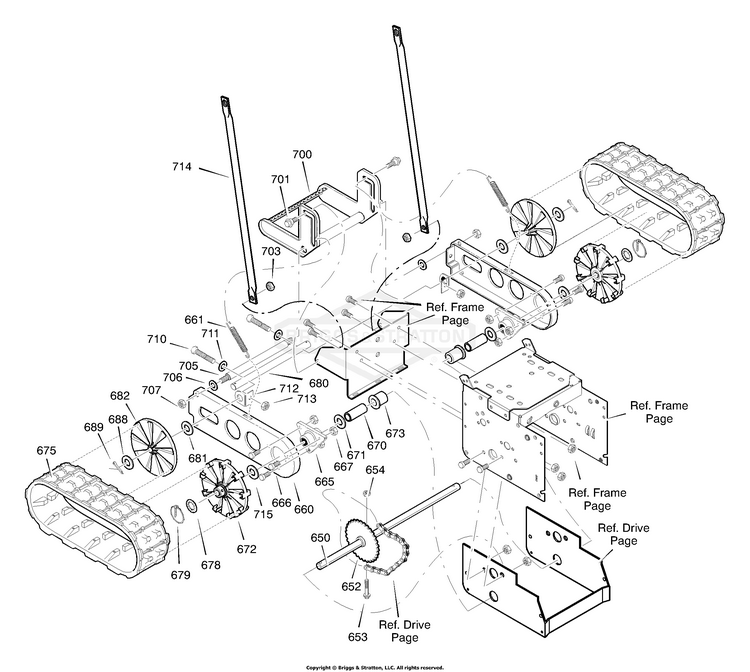

Track Assembly

...
...
650
SHAFT, AXLE BS-1501221
...
652
SPROCKET AND HUB BS-579901
...
653
BOLT, HEX 1/4-20 x 2.25 BS-73839MA
...
654
NUT, 1/4-20, NYLOCK BS-703232
...
660
PLATE, TRACK DIRECT BS-580635E717
...
661
SPRING, DRIVE IDLER BS-51447MA
...
665
BEARING, TRACK BS-316863MA
...
666
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
667
NUT,25-20 HEX FLG CTR BS-15X143MA
...
670
SPACER, .750 ID x 1.30 BS-580763
...
671
WASHER, FLAT BS-712120MA
...
672
WHEEL, TRACK DRIVE 0.75 ID x 8.5 OD BS-318719MA
...
673
BEARING,AXLE BS-1501114MA
...
675
TRACK BS-580984
...
678
RETAINER, Ring BS-1657528SM
...
679
PIN, KLIK BS-322424MA
...
680
SHAFT, IDLER BS-580876
...
681
WASHER, FLAT BS-579597MA
...
682
WHEEL, TRACK IDLER, 0.63 ID x 8.50 OD BS-318720MA
...
688
WASHER, FLAT BS-579597MA
...
689
PIN, COTTER BS-302847
...
700
PEDAL, FOOT BS-580657E701
...
701
BOLT, .430 x .265 BS-6001MA
...
703
NUT, 5/16-18 BS-710026
...
705
SHAFT, FOOT PEDAL -4.75" BS-580652
...
706
WASHER, FLAT BS-71072
...
707
NUT, 3/8-16 BS-711906
...
710
SCREW, 1/4-20 x 3.00 BS-302618MA
...
711
WASHER BS-703332
...
712
BRACKET, TRACK TENSIONER BS-581033 YZ
...
713
NUT, 1/4-20, NYLOCK BS-703232
...
714
BRACE BS-1501222E701
...
715
WASHER BS-6104MA
