627774x85A Murray - Dual Stage Snow Thrower (2003)

Model: 627774x85A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

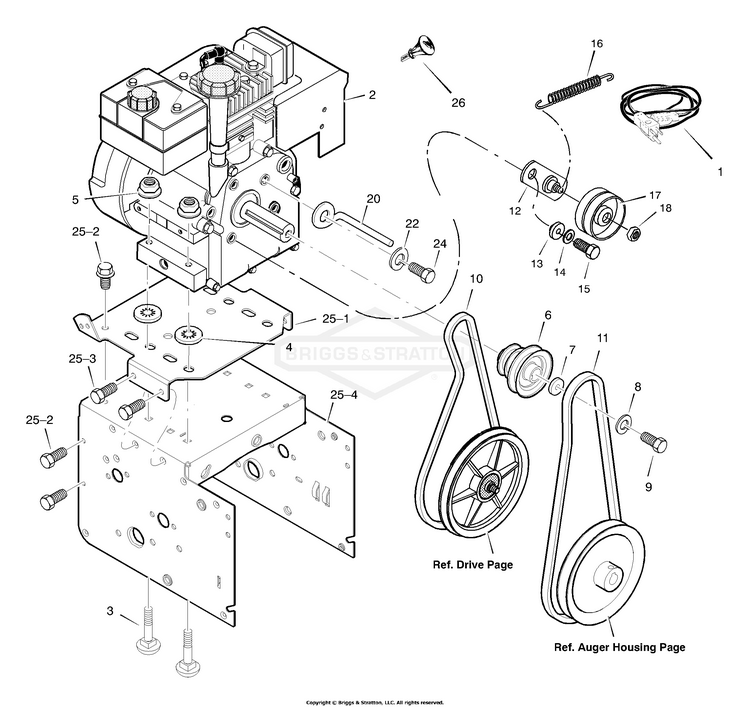

Engine

...
...
1
CORD, Electric 10FT 220V 3 Wire BS-761332MA
...
3
BOLT, 5/16-18X1.50 BS-704210
...
4
NUT,SPEED BS-028X76MA
...
5
NUT 5/16-18 BS-710026
...
6
PULLEY, ENGINE BS-1501109MA
...
7
WASHER BS-710247
...
8
WASHER .38ID BS-71063
...
9
SCREW, 3/8-24 x 1.00 BS-71015
...
10
BELT, DRIVE BS-1733324SM
...
11
BELT BS-585416MA
...
12
KIT, IDLER ASEM BS-1687797YP
...
13
BUSHING,IDLER BRKT BS-1501065MA
...
14
M-BAG,2LBG.38 K25 N BS-1501670MA
...
15
SCREW 5/16-24 X 0.75 BS-710097
...
16
SPRING, IDLER TRACTIO BS-53704MA
...
17
IDLER, Plastic Ball Bearing BS-1502120MA
...
18
NUT, HEX, 3/8-16 BS-703996
...
20
BELT GUIDE BS-1739070YP
...
22
M-BAG,2LBG.38 K25 N BS-1501670MA
...
24
SCREW, 5/16-24 x 0.75 BS-710097
...
25-1
PLATE, ENGINE MOUNT BS-1501062E012
...
25-2
SCREW, 1/4-20X0.625 BS-703054
...
25-3
SCREW.31-18X0.50 WAHH BS-25X020MA
...
25-4
FRAME, MOTOR BOX BS-1501050E012
...
26
KEY SET BS-794696
...
--
Owner's MANUAL BS-F-031047L
