627104x30B Murray - Dual Stage Snow Thrower (2000)

Model: 627104x30B

Back To Assemblies

Save Part Not Listed?
product name

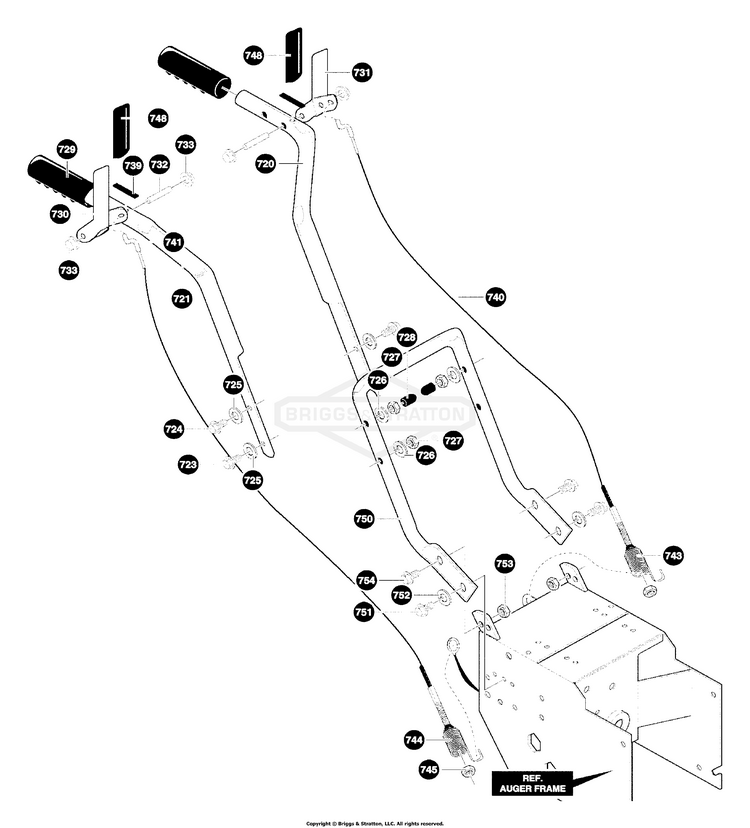

Handle Assembly

...
...
720
HANDLE, UPPER LH BS-5113-821
...
721
HANDLE, UPPER RH BS-5115-821
...
723
SCREW, 3/8-16 x 2.00 BS-71007
...
724
BOLT, 3/8-16 X 3" GD5 BS-5025013X24SM
...
725
WASHER, FLAT BS-71072
...
726
WASHER, .38ID BS-018X31MA
...
727
NUT, 3/8-16 REGHXCTRLK BS-780072MA
...
728
STOP,PLASTIC.375 BS-7289MA
...
729
GRIP, HANDLE BS-50792MA
...
730
ASSY, CLUTCH LEVER RH BS-9729-821
...
731
ASSY, CLUTCH LEVER LH BS-9732-821
...
732
PIN, PIVOT CLUTCH BS-760074MA
...
733
NUT, PUSH ON CAP .312 BS-3535MA
...
739
BUMPER, RECT W/FLAT T BS-4049MA
...
740
CABLE, CLUTCH 32.19 BS-1580MA
...
741
CABLE, CLUTCH 28.50 BS-761591MA
...
743
SPRING, TENSION BS-579869MA
...
744
SPRING, AUGER CLUTCH, BS-1673MA
...
745
NUT, 1/4-20 HEX NYLOCK BS-780029
...
748
GRIP, CLUTCH HANDLE BS-336626
...
750
HANDLE, LOWER BS-5543-821
...
751
SCREW, 5/16-18 x 0.75 BS-782967MA
...
752
WASHER, .31X.58X.08 BS-120638
...
760
ASSY, PANEL BS-760328-898
...
761
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
762
FLATWASHER BS-120393
...
764
NUT 5/16-18 HEXWDFLLK BS-710026
...
766
PLATE, PANEL BS-578978
