624808x4B Murray - Dual Stage Snow Thrower (2000)

Model: 624808x4B

Back To Assemblies

Save Part Not Listed?
product name

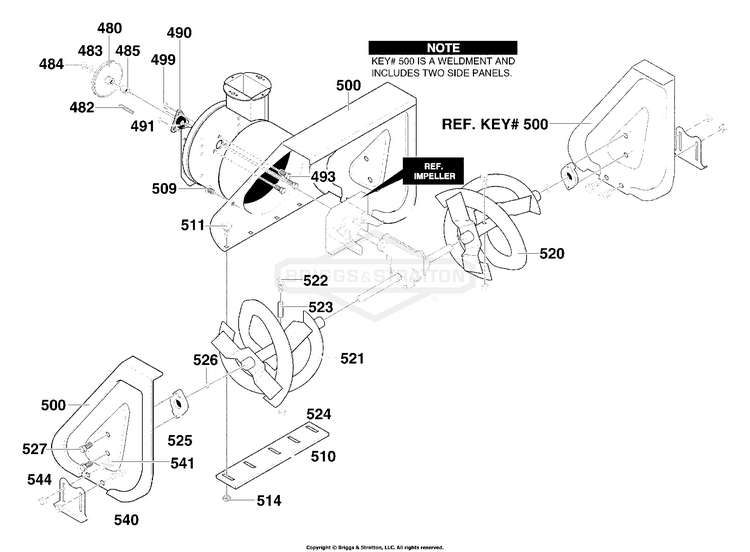

Auger Housing Assembly

...
...
480
PULLEY, V4L BS-583146MA
...
482
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
483
WASHER, FLAT .53X1.00 BS-71074MA
...
484
NUT, 1/2-20 BS-712121MA
...
485
SPACER, SLEEVE BS-334514MA
...
490
RETAINER, BALL BS-582960
...
491
BEARING, BALL BS-043846
...
493
SCREW, 5/16-18 x 0.75 BS-313676
...
499
NUT, 5/16-18 BS-710026
...
500
HOUSING, ASSY BS-761733-860
...
509
PLUG, CHRISTMAS TREE BS-760040MA
...
510
SCRAPER BLADE BS-760657-853
...
511
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
514
NUT, 5/16-18 HEX BS-710026
...
520
AUGER, LH BS-760611-853
...
521
AUGER, RH BS-760612-853
...
522
SCREW, 1/4-20X1.75 BS-703057
...
523
SPACER, SLEEVE BS-703058
...
524
NUT, 1/4-20 BS-703251
...
525
BRNG,AUGER SHAFT MF-L BS-53757MA
...
527
SCREW, 5/16-18 x 0.75 BS-70984
...
540
SKID, HEIGHT ADJUST BS-762377-853
...
541
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
544
NUT, 5/16-18 BS-710026
