624604x43B Murray - Dual Stage Snow Thrower (2004)

Model: 624604x43B

Back To Assemblies

Save Part Not Listed?
product name

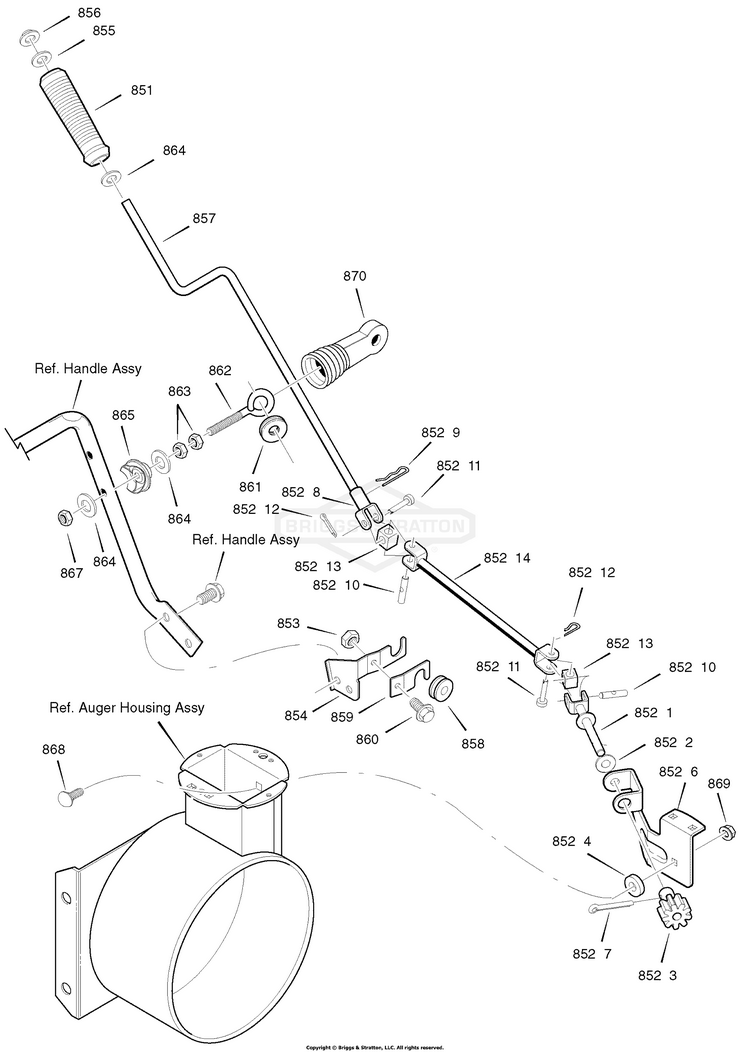

Chute Rod

...
...
851
GRIP, CHUTE CRANK ROD BS-307399
...
852?1
ASSEMBLY, YOKE & ROD BS-1501309 YZ
...
852?2
WASHER, CURVED SPRING BS-313431MA
...
852?3
GEAR,9 TOOTH 8DP BS-1501067MA
...
852?4
WASHER.46.97.25 FLAT BS-17X170MA
...
852?6
BRACKET, GEAR MOUNT BS-1501306E701
...
852?7
GEAR, 9 Tooth BS-1501125MA
...
852?8
YOKE ADAPTER ASY BS-1501075YZMA
...
852?9
PIN, HAIR BS-711682
...
852?10
GEAR, 9 Tooth BS-1501125MA
...
852?11
LF PIN, CLEVIS .25DX BS-578309MA
...
852?12
GEAR, 9 Tooth BS-1501125MA
...
852?13
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
852?14
CRANK, LOWER CHUTE BS-1501081 YZ
...
853
NUT 1/4-20 x 1/2 BS-73826
...
854
BRACKET, SUPPORT CHUTE BS-761773E701
...
855
FLATWASHER BS-309312
...
856
NUT, PUSH ON 3/8" BS-73664MA
...
857
CRANK, ASSY CHUTE BS-1501116 YZ
...
858
GROMMET BS-339534
...
859
BRACKET, MATING CHUTE BS-339507E701
...
860
BOLT 1/4-20 X 1/2 BS-313686
...
861
GROMMET, Eyelet BS-148MA
...
862
EYE BOLT 3/8-16X6.00 BS-581618
...
863
NUT, 3/8-16 HEXJAM BS-71045
...
864
FLATWASHER .406X.81X.066 BS-71072
...
865
ADAPTER, BOOT BS-309344
...
867
NUT BS-703117
...
868
BOLT, 1/4-20X1, GR5 BS-703584
...
869
NUT BS-15X145
...
870
BOOT, EYE BOLT BS-308145
