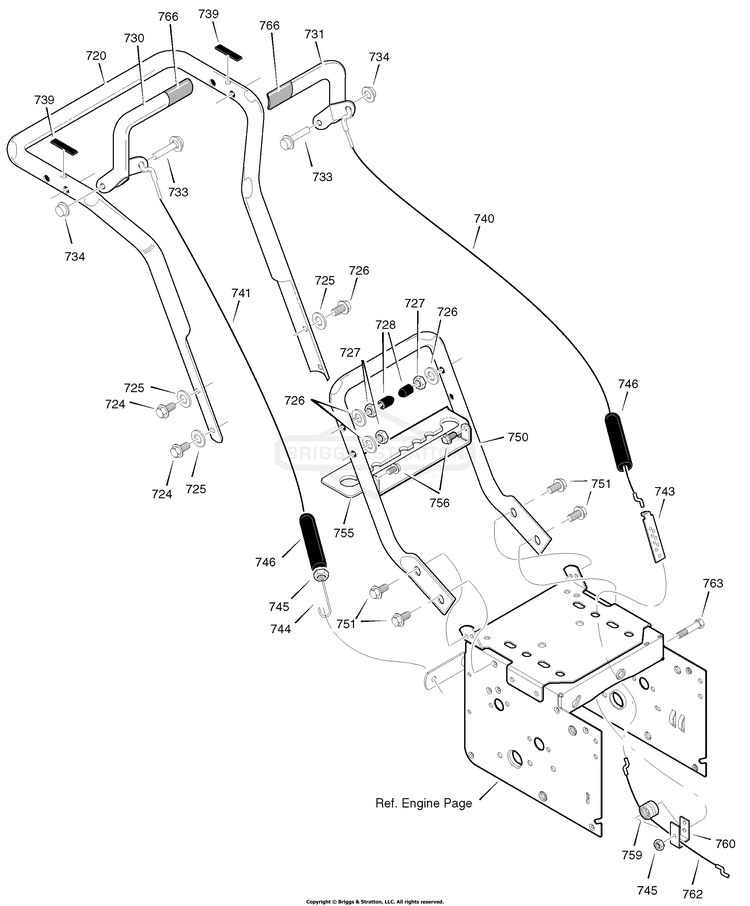

624604x43B Murray - Dual Stage Snow Thrower (2004)

Model: 624604x43B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Handle

...
...
720
HANDLE, UPPER BS-321835E701
...
724
CAPSCREW,5/16-18X2.75 BS-703869
...
725
WASHER BS-703350
...
726
M-BAG,2LBG.38 K25 N BS-1501670MA
...
727
HN, 5/16C GR5 YZ BS-7091511SM
...
728
STOP, RED PLASTIC BS-11261MA
...
730
CLUTCH HANDLE, RIGHT BS-301386E701
...
731
CLUTCH HANDLE, LEFT BS-301387E701
...
733
PIN, PIVOT CLUTCH BS-1501477
...
734
NUT, PUSH ON CAP BS-3535
...
739
BUMPER, RECT W/FLAT T BS-4049MA
...
740
CABLE,FR-DR P1,P2,P3, BS-1501123MA
...
741
CABLE, AUGER CLUTCH BS-761589
...
743
BRACKET, CABLE ADJ BL BS-313441MA
...
744
SPRING, AUGER CLUTCH, BS-1673MA
...
745
NUT, 1/4-20 BS-15X145
...
746
BOOT, CLUTCH SPRING BS-308146MA
...
750
HANDLE, LOWER BS-339541E701
...
751
SCREW, 5/16-18 X .75 BS-703228
...
755
BRKT, GEAR SELECTOR BS-337407E701
...
756
SCREW, 1/4-20X0.625 BS-703054
...
759
CABLE SPOOL, Auger Control BS-579860MA
...
760
BRKT, SPOOL BS-1501059YZMA
...
762
CABLE, LOWER DRIVE 12" BS-1501122MA
...
763
BOLT, HEX 1/4-20 X 1.50 BS-1798
...
766
GRIP BS-333927
