624604x43B Murray - Dual Stage Snow Thrower (2004)

Model: 624604x43B

Save Part Not Listed?

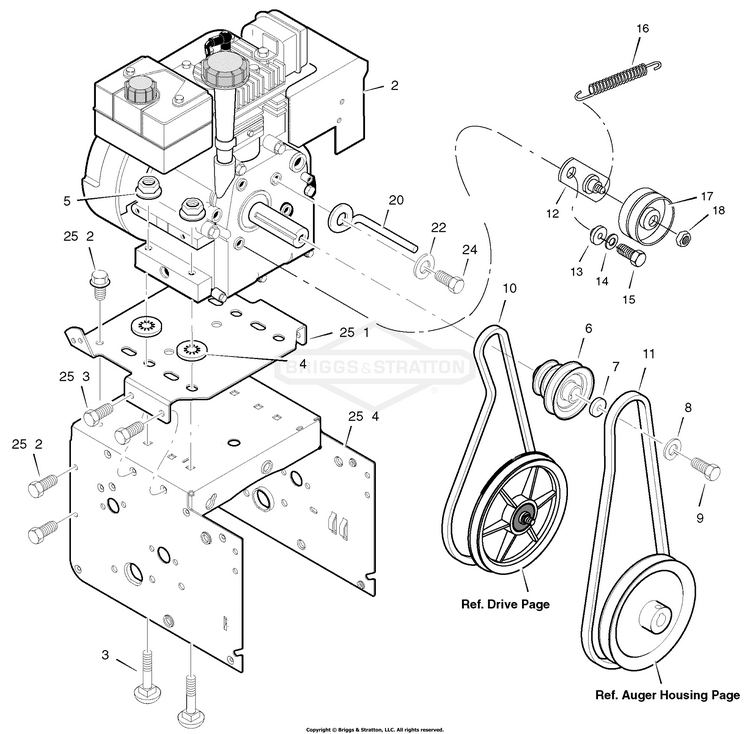

Engine

CHUTE ASSEMBLY BS-1501884E701MA

NUT,SPEED BS-028X76MA

NUT 5/16-18 BS-710026

PULLEY, ENGINE BS-1501109MA

WASHER BS-710247

WASHER .38ID BS-71063

SCREW, 3/8-24 x 1.00 BS-71015

BELT, DRIVE BS-1733324SM

BELT, AUGER BS-37X120

KIT, IDLER ASEM BS-1687797YP

BUSHING,IDLER BRKT BS-1501065MA

M-BAG,2LBG.38 K25 N BS-1501670MA

SCREW, 5/16-18 X .75 BS-703228

SPRING, IDLER TRACTIO BS-53704MA

PULLEY, IDLER BS-50793

NUT, HEX, 3/8-16 BS-703996

BELT GUIDE BS-1739070YP

M-BAG,2LBG.38 K25 N BS-1501670MA

SCREW, 5/16-24 x 0.75 BS-710097

25?1

PLATE, ENGINE MOUNT BS-1501062E735

25?2

SCREW, 1/4-20X0.625 BS-703054

25?3

SCREW.31-18X0.50 WAHH BS-25X020MA

25?4

FRAME, MOTOR BOX BS-1501049E735

OWNER’S MANUAL BS-F-0410125L
