624604x43B Murray - Dual Stage Snow Thrower (2004)

Model: 624604x43B

Back To Assemblies

Save Part Not Listed?
product name

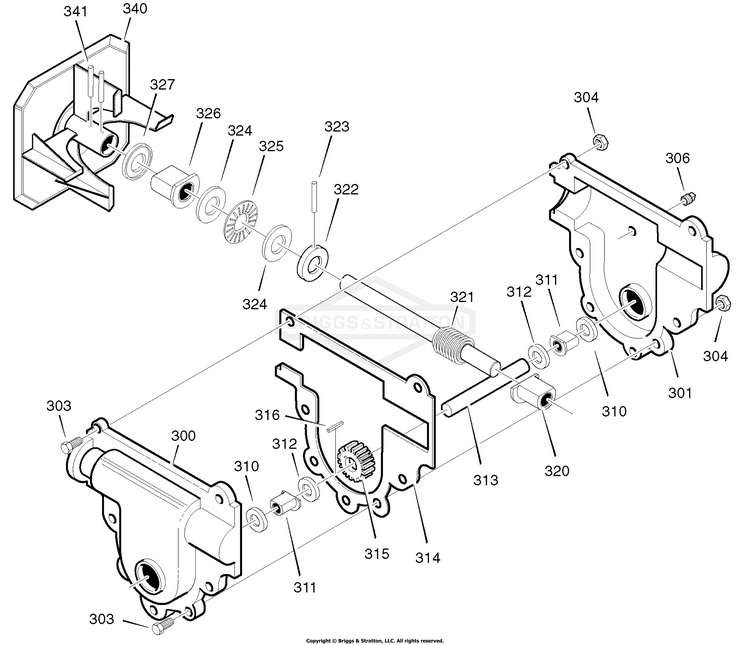

Gear Case

...
...
300
CASE, Gear, RH BS-10577MA
...
301
CASE, Gear, LH BS-10576MA
...
303
SCREW,1/4-20X.75 BS-710025
...
304
CHUTE HDWARE KIT SEAR BS-7001278MA
...
306
PLUG, Pipe, 3/8 BS-1673452SM
...
310
SEAL, OIL, .75 X 1.19 BS-9566MA
...
311
BRNG, FL .752IDX1.002 BS-50304MA
...
312
WASHER, FLAT .752X1. BS-48275MA
...
313
SHAFT, AUGER OUTPUT BS-340286
...
314
GASKET, Gear Box BS-51279MA
...
315
MANUAL-OPERATOR BS-51405GS
...
316
KEY, 3/16X.625 BS-703891
...
320
BRNG,FLNG.502IDX0.752 BS-50221MA
...
321
SHAFT, AUGER INPUT (IMPELLER) BS-1501128
...
322
COLLAR,THRUST.753X1.2 BS-580295MA
...
323
PIN, SPRING.250DIAX1. BS-454565MA
...
324
WASHER, FLAT .752X1. BS-48275MA
...
325
BEARING, Roll BS-50684MA
...
326
BRNG, FL .752IDX1.002 BS-50304MA
...
327
SEAL, OIL, .75 X 1.19 BS-9566MA
...
340
IMPELLER BS-760194E701
...
341
PIN, SPRING.250DIAX1. BS-454565MA
...
*
10oz TUBE LUBRIPLATE BS-333431
