624515x4B Murray - Dual Stage Snow Thrower (2000)

Model: 624515x4B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

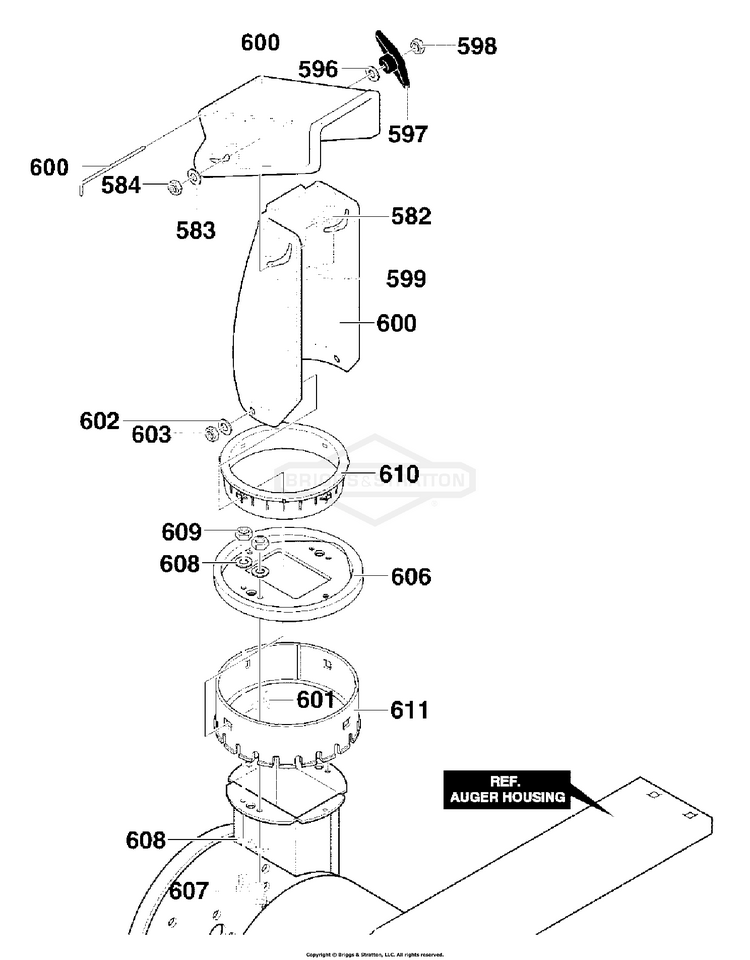

Discharge Chute

...
...
582
SCREW, 5/16-18X .75SL BS-578088MA
...
583
WASHER, FLAT .349X.69X.066 BS-120393
...
584
NUT, 5/16-18 REGHEXCTRLK BS-1498
...
596
WASHER, FLAT .349X.69X.066 BS-120393
...
597
KNOB, T 3.00 BS-13527
...
598
HN, 5/16C GR5 YZ BS-7091511SM
...
599
BOLT, 5/16-18X1.25 CA BS-302843MA
...
600
CHUTE ASSEMBLY BS-762222MA
...
601
BOLT, 5/16-18 X1.00 BS-586280
...
602
WASHER, FLAT .349 X .69 X .066 BS-120393
...
603
NUT, HEX, 5/16-18 BS-703902
...
606
CHUTE COLLAR BS-585214-853
...
607
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
608
WASHER BS-703332
...
609
NUT, 1/4-20 HEX NYLOCK BS-780029
...
610
RETAINER RING INNER BS-337227MA
...
611
RETAINER RING OUTER BS-585193MA
Schematic Image Zoomed
