624508x4B Murray - Dual Stage Snow Thrower (2000)

Model: 624508x4B

Back To Assemblies

Save Part Not Listed?
product name

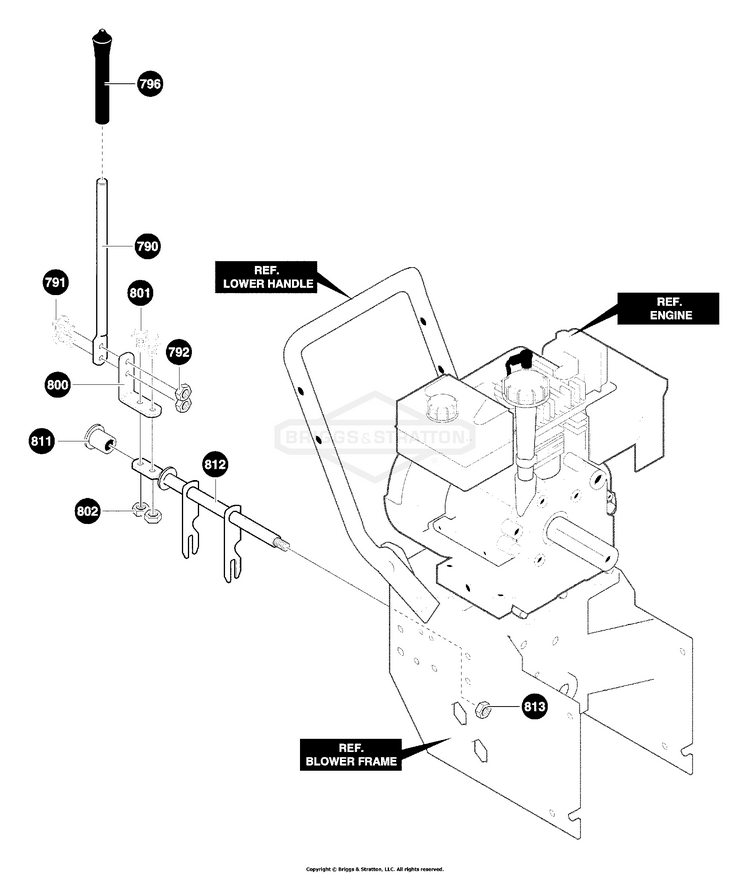

Shift Yoke Assembly

...
...
790
ROD, SHIFT BS-336702-853
...
791
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
792
NUT, 1/4-20 BS-703251
...
796
KNOB, SLIP PLASTISOL BS-331624MA
...
800
LEVER,SPRING SHIFT BS-760564MA
...
801
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
802
NUT, 1/4-20 BS-703251
...
811
BRNG FL .500ID X .88 BS-579944MA
...
812
ROD, ASSY. YOKE BS-581795
...
813
NUT, 3/8-16 HEXCTRLK BS-071111
