624501x85A Murray - Single Stage Snow Thrower (2003)

Model: 624501x85A

Back To Assemblies

Save Part Not Listed?
product name

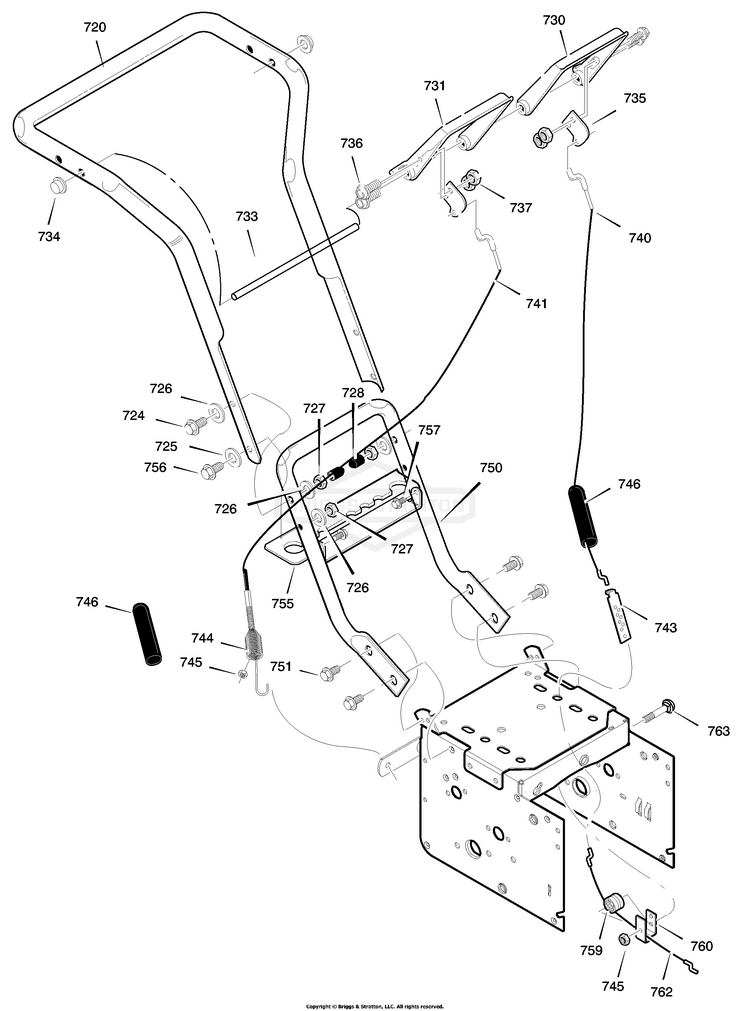

Handle Assembly

...
...
720
HANDLE BS-321835E701
...
724
CAPSCREW,5/16-18X2.75 BS-703869
...
725
WASHER BS-703350
...
726
M-BAG,2LBG.38 K25 N BS-1501670MA
...
727
HN, 5/16C GR5 YZ BS-7091511SM
...
728
PLASTIC-STOP BS-11261MA
...
730
CLUTCH, LEFT HANDLE CONTROL BS-301386E717
...
731
CLUTCH, RIGHT HANDLE CONTROL BS-3011387E717
...
733
ROD, PIVOT HANDLE BS-12621
...
734
NUT, PUSH ON CAP .312 BS-3535MA
...
735
PLATE, CABLE PIVOT BS-302620E701
...
736
SCREW BS-303108
...
737
NUT BS-73826
...
740
CABLE,FR-DR P1,P2,P3, BS-1501123MA
...
741
CABLE, AUGER CLUTCH BS-761589MA
...
743
BRACKET, CABLE ADJ BL BS-313441MA
...
744
SPRING, AUGER CLUTCH, BS-1673MA
...
745
NUT, 1/4-20, NYLOCK BS-703232
...
746
BOOT, CLUTCH SPRING BS-308146MA
...
750
HANDLE, LOWER BS-1740701ASM
...
751
SCREW, 5/16-18 X .75 BS-703228
...
755
BRKT,GEAR SELECT P123 BS-337407E701MA
...
756
SCREW, .31-18 x 2.00 BS-6751
...
757
SCREW, 1/4-20X0.625 BS-703054
...
759
SPOOL-CABLE, AUGRT CLUTCH BS-579860MA
...
760
BRKT, SPOOL BS-1501059YZMA
...
762
CABLE, LOWER DRIVE 12" BS-1501122MA
...
763
BOLT, 1/4-20 BS-5025010X12SM
