624501x85A Murray - Single Stage Snow Thrower (2003)

Model: 624501x85A

Back To Assemblies

Save Part Not Listed?
product name

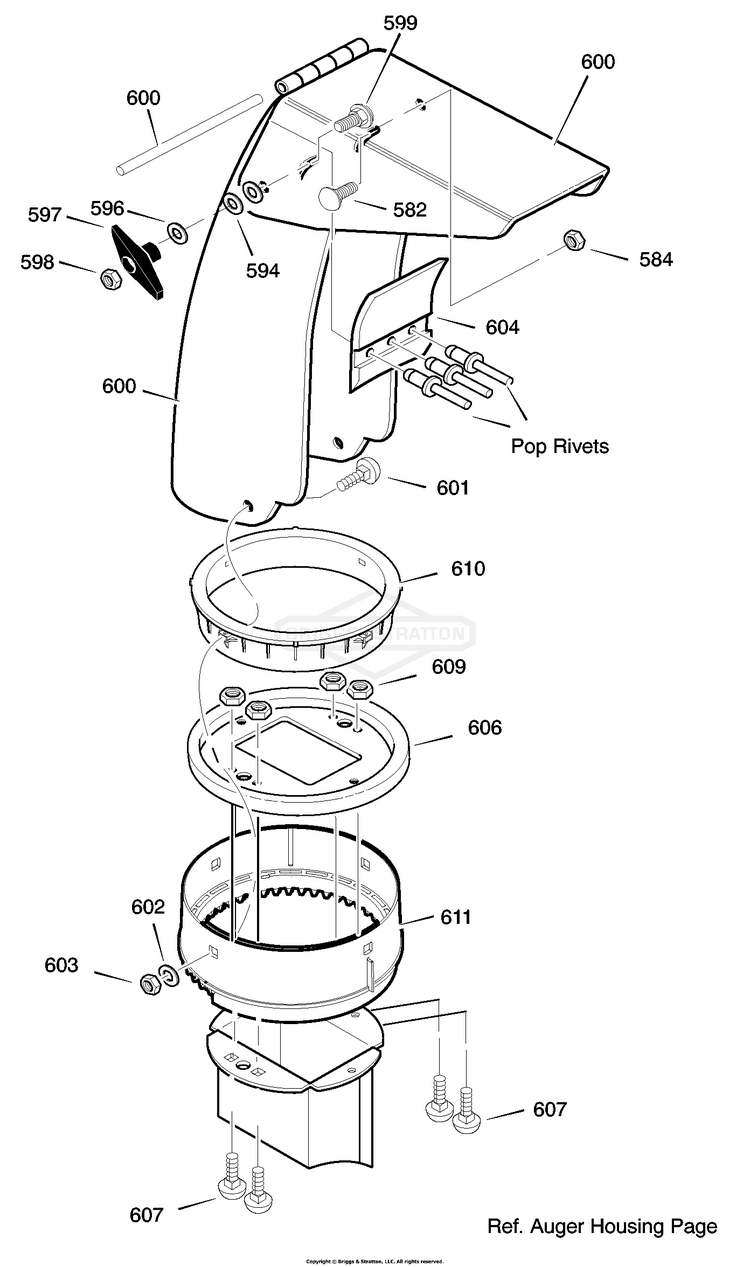

Discharge Chute

...
...
582
BOLT, CARRIAGE 5/16-18 X.75 BS-02X100
...
584
NUT, HEX, 5/16-18 BS-703902
...
594
WASHER BS-703350
...
596
WASHER BS-703350
...
597
KNOB, WING 3.00 BS-1501260MA
...
598
HN, 5/16C GR5 YZ BS-7091511SM
...
599
BOLT, 5/16-18X1.00 BS-02X100
...
600
CHUTE ASSEMBLY AND GUARD BS-1501579
...
601
BOLT, 5/16-18 X1.00 BS-02X100
...
602
WASHER BS-703350
...
603
NUT, HEX, 5/16-18 BS-703902
...
604
FLAP,CHUTE INSERT C2 BS-760268MA
...
606
CHUTE COLLAR BS-585214 YZ
...
607
BOLT, 1/4-20 X 3/4 BS-703440
...
609
NUT, 1/4-20, NYLOCK BS-703232
...
610
RETAINER RING INNER BS-337227MA
...
611
RING,OUTER CHUTE BS-1501282MA
