624501x85A Murray - Single Stage Snow Thrower (2003)

Model: 624501x85A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

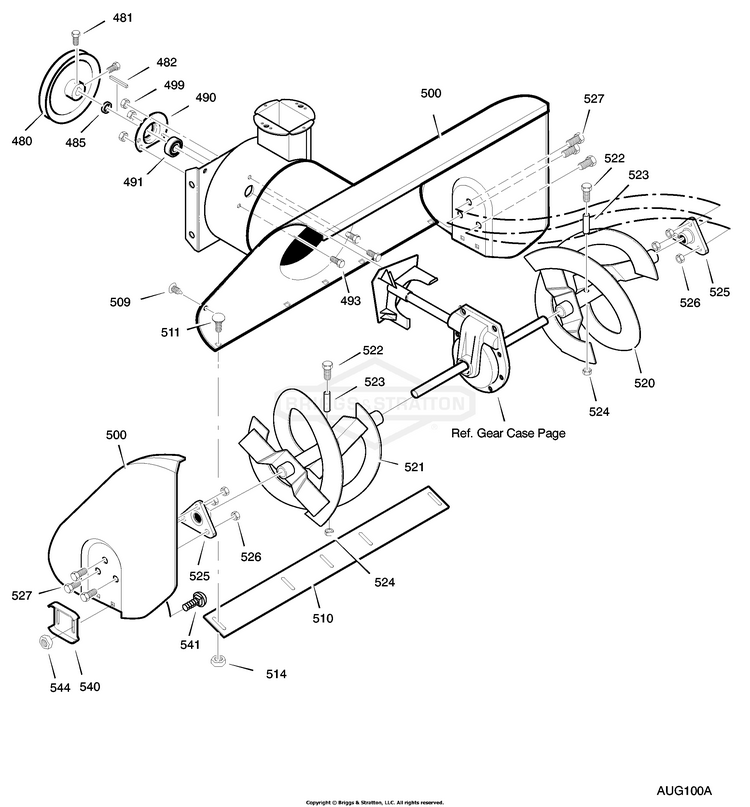

Auger Housing

...
...
480
PULLEY, 4L 8.4 X .67 HYBRID BS-1501211MA
...
481
SCREW, 5/16-18X.63 HH BS-577400MA
...
482
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
485
SPACER,FRICTION PULLE BS-1501158MA
...
490
RETAINER, BEARING BS-1756809YP
...
491
BEARING, BALL 11/16X1 BS-1705897SM
...
493
BOLT, HEX 5/16-18X .50 BS-001X92MA
...
499
NUT, 5/16-18 HEXWDFLLK BS-710026
...
500
HOUSING, ASSY BS-1501184E012
...
509
PLUG, CHRISTMAS TREE BS-760040MA
...
510
BLADE, Scraper BS-1738335AYP
...
511
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
514
NUT, 5/16-18 BS-710026
...
520
AUGER, ASSY, LH BS-1401441E701
...
521
AUGER, ASSY, RH BS-1501440E701
...
522
SCREW, 1/4-20X1.75 BS-703057
...
523
SPACER, SLEEVE BS-703058
...
524
NUT, 1/4-20 BS-73826
...
525
BEARING AUGER BLACK BS-9517MA
...
526
NUT, Hex Flange, Top Lock, 5/16-18 BS-703119
...
527
SCREW, 5/16-18 BS-703354
...
540
SKID, HEIGHT ADJUST BS-7309016E701
...
541
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
544
NUT, 5/16-18 BS-710026
...
--
KIT,SHEAR BOLT.25-20X BS-1501216MA
