622594x85NB Murray - Single Stage Snow Thrower (2005)

Model: 622594x85NB

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

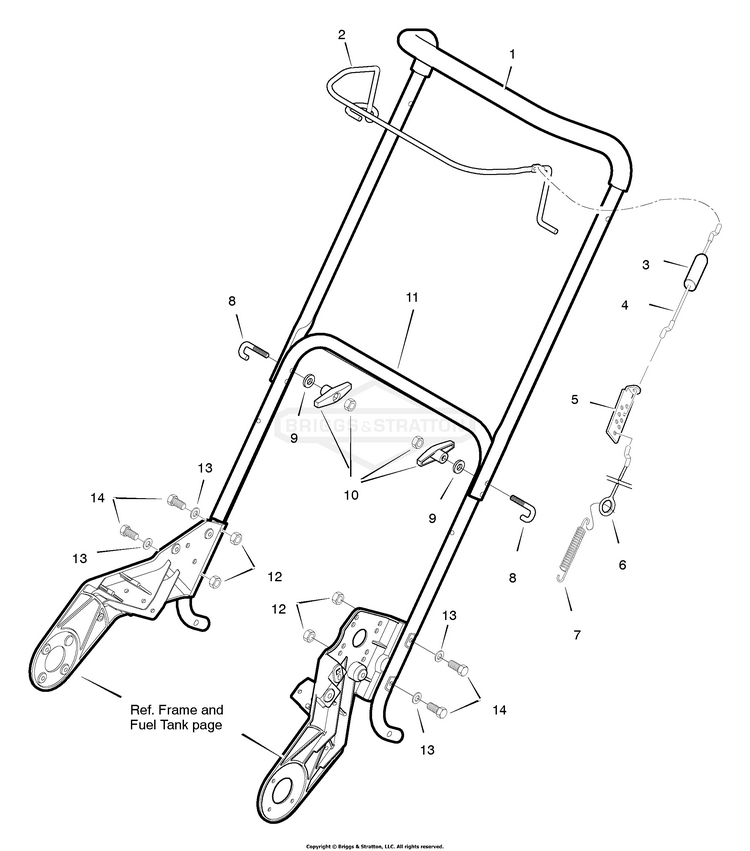

Handle Assembly

...
...
1
Handle & Grip Assembly BS-1502001MA
...
2
Control, Bail BS-1501861E701MA
...
3
Boot, Clutch Spring BS-308146MA
...
4
Cable, Upper Control BS-1502042MA
...
5
BRACKET, CABLE ADJ BL BS-313441MA
...
6
Cable, Lower Control BS-313448MA
...
7
SPRING,EXT.75 OD X.06 BS-313471MA
...
8
U-Bolt BS-1501877MA
...
9
WASHER, FORM .344 ID BS-311936MA
...
10
Knob, Wing BS-1501260MA
...
11
Handle, Lower BS-1501860E701MA
...
12
Nut BS-73826
...
13
WASHER BS-703332
...
14
BOLT, 1/4-20 X 1-1/4" BS-5025010X10SM
