622591x85NB Murray - Single Stage Snow Thrower (2005)

Model: 622591x85NB

Back To Assemblies

Save Part Not Listed?
product name

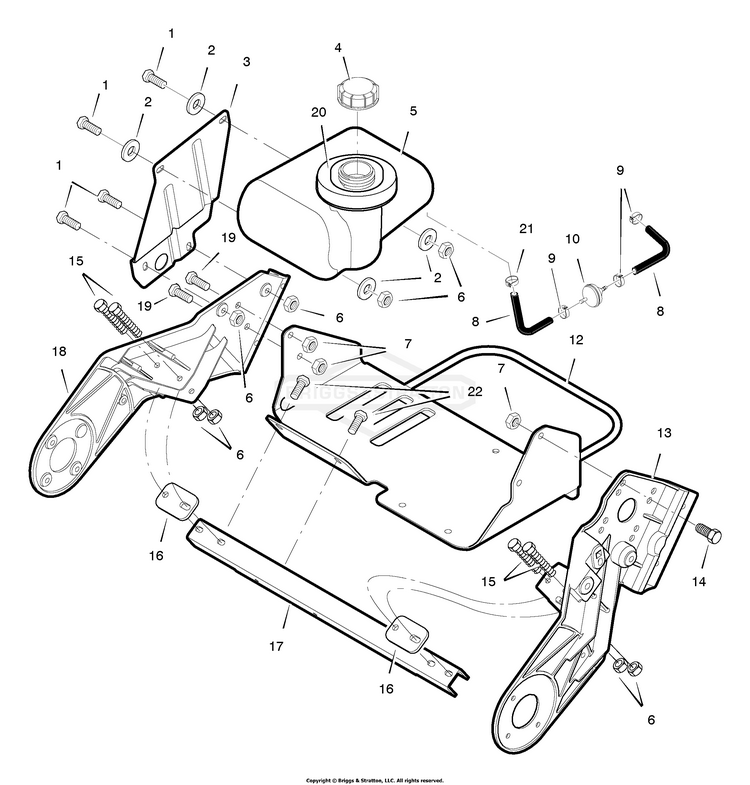

Frame And Fuel Tank

...
...
1
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
2
WASHER BS-703332
...
3
Bracket, Fuel Tank BS-1502053E701
...
4
CAP, Fuel Tank BS-692046
...
5
Tank, Fuel BS-1501875MA
...
6
Nut, Hex 1/4-20 BS-73826
...
7
IDLER SUPT ASSY 22SD BS-1101253MA
...
8
HOSE, FUEL 12 INCHES (Cut to length) BS-1502028MA
...
9
Clamp, Fuel Line BS-323387MA
...
10
Filter, Fuel Line BS-298090S
...
12
Cradle Assembly, Engine BS-1501849E701MA
...
13
Frame, LH BS-1501872E701MA
...
14
SCREW 5/16-18 X 0.63 WAHHC BS-48901MA
...
15
SCREW, 1/4-20 X 2.00 BS-180044MA
...
16
PLATE, SUPPORT BS-335351MA
...
17
Support, Frame BS-1501851MA
...
18
Frame, RH BS-1741988AYP
...
19
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
20
Ring, Foam BS-1501707MA
...
21
CLAMP, SCREW TYPE BS-47345MA
...
22
SCREW, 1/4-20X0.625 BS-703054
