622505x0A Murray - Dual Stage Snow Thrower (2003)

Model: 622505x0A

Back To Assemblies

Save Part Not Listed?
product name

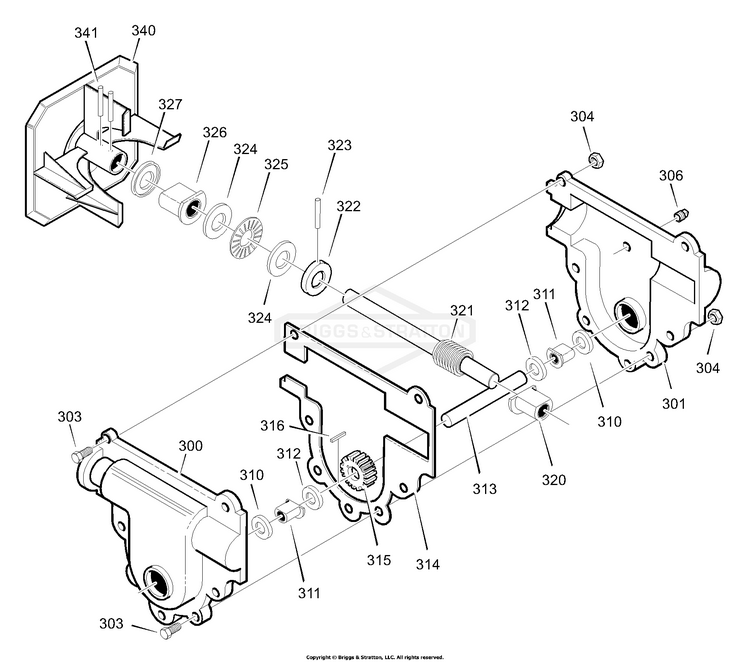

Gear Case

...
...
300
CASE, GEAR, RH BS-10577MA
...
301
CASE, GEAR, LH BS-10576MA
...
303
SCREW,1/4-20X.75 BS-710025
...
304
NUT,25-20 HEX FLG CTR BS-15X143MA
...
306
CAPSCREW, 3/8-16 X .5 BS-704213
...
310
SEAL, OIL, .75 X 1.19 BS-9566MA
...
311
BRNG, FL .752IDX1.002 BS-50304MA
...
312
WASHER, FLAT .752X1. BS-48275MA
...
313
SHAFT,AUGER,OUTPUT 22 BS-340284MA
...
314
GASKET, GEAR BOX BS-51279MA
...
315
GEAR,WORM BS-51405MA
...
316
KEY, 3/16X.625 BS-703891
...
320
BRNG,FLNG.502IDX0.752 BS-50221MA
...
321
SHAFT, AUGER INPUT (IMPELLER) BS-1501128MA
...
322
COLLAR,THRUST.753X1.2 BS-580295MA
...
323
PIN, SPRING.250DIAX1. BS-454565MA
...
324
WASHER, FLAT .752X1. BS-48275MA
...
325
BRNG, ROLL BS-50684MA
...
326
BRNG, FL .752IDX1.002 BS-50304MA
...
327
SEAL, OIL, .75 X 1.19 BS-9566MA
...
340
IMPELLER ASY, 9IN 4BL BS-760194E701MA
...
341
PIN, SPRING.250DIAX1. BS-454565MA
...
--
LUBRIPLATE (Not Illustrated) BS-770622
