621540x85NA Murray - Single Stage Snow Thrower (2003)

Model: 621540x85NA

Back To Assemblies

Save Part Not Listed?
product name

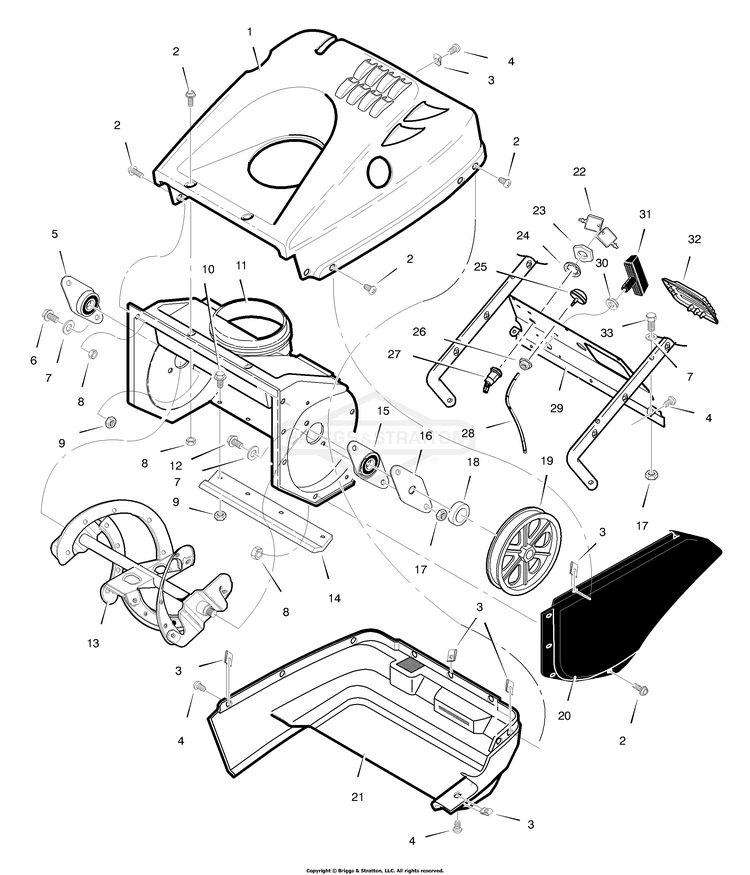

Auger & Control Assembly

...
...
1
COVER, TOP BS-1501704MA
...
2
SCREW, #10-24 x 0.50 BS-12342MA
...
3
NUT, 1/4-10 SPEED J-TYPE BS-578109MA
...
4
SCREW, 1/4-14X .75 SL BS-313685MA
...
5
BRNG, FLNG BS-577023MA
...
6
SCREW, 1/4-20 X 1.00 BS-710263MA
...
7
WASHER BS-703332
...
8
NUT#10-24 MCLEANLOCK BS-015X81MA
...
9
NUT,25-20 HEX FLG CTR BS-15X143MA
...
10
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
11
AUGRT HOUSING ASSY. BS-340091MA
...
12
SCREW.25-20X0.62 HHC BS-579052MA
...
13
AUGER ASSY., COMP. BS-327072MA
...
14
BLADE, SCRAPER BS-55323MA
...
15
PLATE&BEARING ASY BS-583459MA
...
16
LT PLATE, RETAIKNER BRNG BS-334287MA
...
17
NUT, 1/4-20 REXHEX CTRLK BS-73826
...
18
SPACER, SLEEVE BS-578101MA
...
19
PULLEY BS-333446MA
...
20
COVER, BELT BS-340089MA
...
21
COVER, BOTTOM BS-1501705MA
...
22
SET, Key BS-691959
...
23
NUT, 5/8-32 BS-300193MA
...
24
WASHER, INTERNAL LOCK BS-313683MA
...
25
PRIMER-CARBURETOR BS-394281S
...
26
NUT, 1/-20 REGHEX KEPS BS-271172
...
27
SWITCH, IGNITION 45 DEG. BS-56992MA
...
28
HOSE, PRIMER 9.5" BS-335507MA
...
29
PANEL, CONTROL BS-1501706MA
...
30
GROMMET & WASHER BS-57587MA
...
31
GRIP, RECOIL START BS-333643
...
32
PANEL, ACCESS SPARK PLG BS-1501699MA
...
33
BOLT, 1/4-20 X 1-1/4" BS-5025010X10SM
