621540x85NA Murray - Single Stage Snow Thrower (2003)

Model: 621540x85NA

Back To Assemblies

Save Part Not Listed?
product name

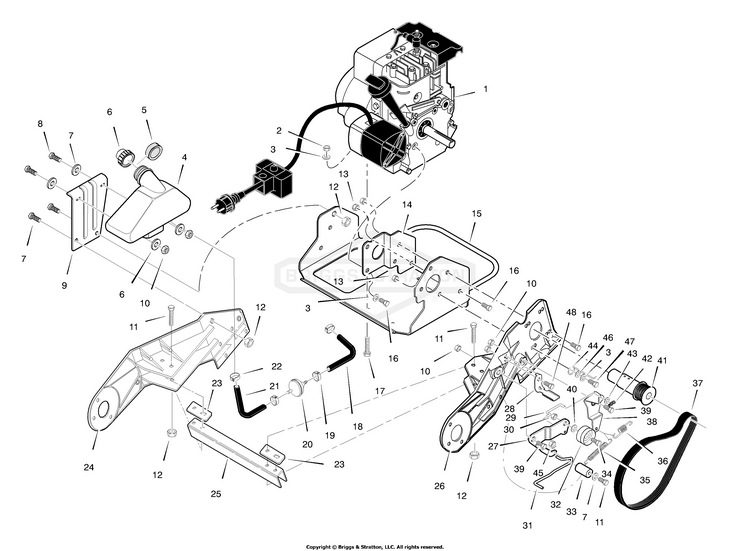

Engine & Frame Assembly

...
...
2
HN, 5/16C GR5 YZ BS-7091511SM
...
3
M-BAG,2LBG.38 K25 N BS-1501670MA
...
4
TANK, FUEL BS-333739MA
...
5
RING, FOAM FURL TANK BS-762224
...
6
CAP, Fuel Tank BS-692046
...
7
WASHER BS-703332
...
8
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
9
BRACKET, FUEL TANK BS-333749E701MA
...
10
NUT, 1/4-20 BS-703251
...
11
SCREW, 1/4-20 X 2.00 BS-180044MA
...
12
NUT BS-703127
...
13
IDLER SUPT ASSY 22SD BS-1101253MA
...
14
BRACKET, ENGINE BS-1501703E701MA
...
15
CRADLE, WELDMENT BS-1501744E701MA
...
16
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
17
BOLT, ENGINE MOUNT BS-001X81MA
...
18
TUBING, FUEL LINE 6 IN. BS-335906MA
...
19
CLAMP, FUEL LINE BS-323387MA
...
20
FILTER, FUEL LINE BS-298090S
...
21
TUBING.25X.47X 8.00 G BS-323363MA
...
22
CLAMP, SCREW TYPE BS-47345MA
...
23
PLATE, SUPPORT BS-335351MA
...
24
FRAME, RH. SIDE STEEL SUPT. BS-1501700E701
...
25
CHANNEL, FRAME SUPPORT BS-333987MA
...
26
FRAME, LH. SIDE STEEL SUPT. BS-333767
...
27
LF ARM, IDLER BRACKET BS-320077MA
...
28
LF PAD, BRAKE BS-333970MA
...
29
ROD, CLUTCH LINKAGE BS-313436MA
...
30
NUT, HEX, 3/8-16 BS-703996
...
31
WIRE, BRAKE BS-1501009MA
...
32
PULLEY, IDLER BS-48924MA
...
33
ROLLER, PINCH BS-1501010MA
...
34
SCREW, 3/8-16 x 1.50 BS-302637MA
...
35
SPRING, EXTENSION BS-313473MA
...
36
SPRING,EXT.75 OD X.06 BS-313471MA
...
37
BELT BS-333721MA
...
38
ARM, IDLER PIVOT BS-313444MA
...
39
BOLT-SHD.500X.177 .31 BS-333594MA
...
40
WASHER, FLAT BS-301188MA
...
41
PULLEY, ENGINE BS-1501702MA
...
42
PIN, COTTER BS-121223MA
...
43
WASHER, FLAT BS-414106MA
...
44
GUIDE, BELT BS-334079MA
...
45
NUT, 1/4-20 BS-73826
...
46
WASHER BS-703350
...
47
SCREW BS-710312
...
48
SCREW.25-20X0.62 HHC BS-579052MA
