621520x43NA Murray - Single Stage Snow Thrower (2003)

Model: 621520x43NA

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

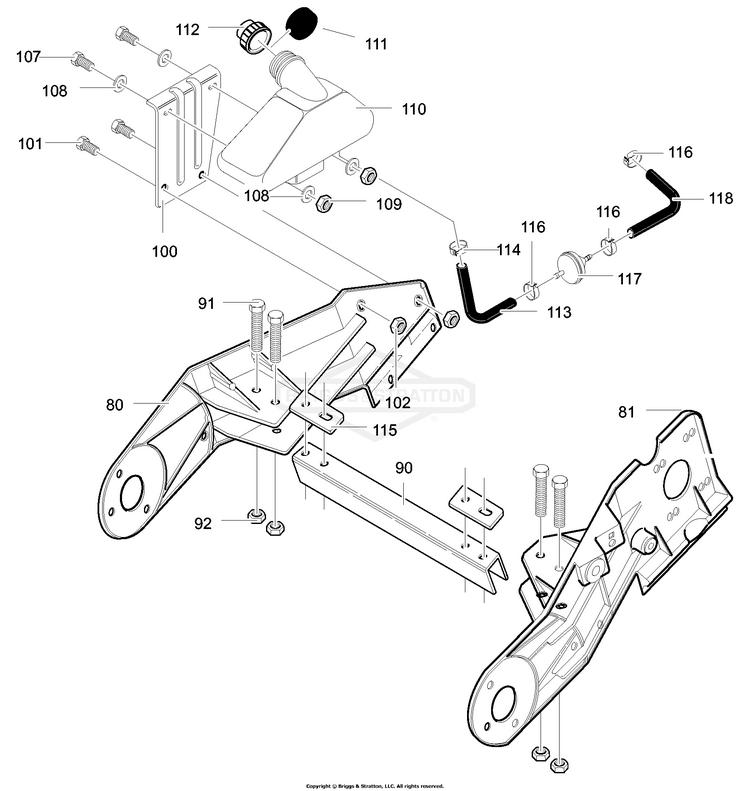

Frame Components Assembly

...
...
80
FRAME, RIGHT SIDE BS-333769E701MA
...
81
FRAME, LEFT SIDE BS-333767E701
...
90
CHANNEL, FRAME BS-333987MA
...
91
SCREW, 1/4-20 X 2.00 BS-180044MA
...
92
NUT, 1/4-20 BS-73826
...
100
BRACKET, FUEL TANK BS-333749E701MA
...
101
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
102
NUT, 1/4-20 BS-73826
...
107
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
108
WASHER BS-703332
...
109
NUT, 1/4-20 BS-73826
...
110
TANK, FUEL 1.5QT BS-333739MA
...
111
RING, FUEL TANK BS-762224
...
112
CAP, FUEL BS-340299MA
...
113
TUBING.25X.47X 8.00 G BS-323363MA
...
114
CLAMP, SCREW TYPE BS-47345MA
...
115
PLATE, SUPPORT BS-335351MA
...
116
CLAMP, HOSE BS-323387MA
...
117
FILTER, Fuel BS-394358S
...
118
TUBING BS-335906MA
