621520x43NA Murray - Single Stage Snow Thrower (2003)

Model: 621520x43NA

Back To Assemblies

Save Part Not Listed?
product name

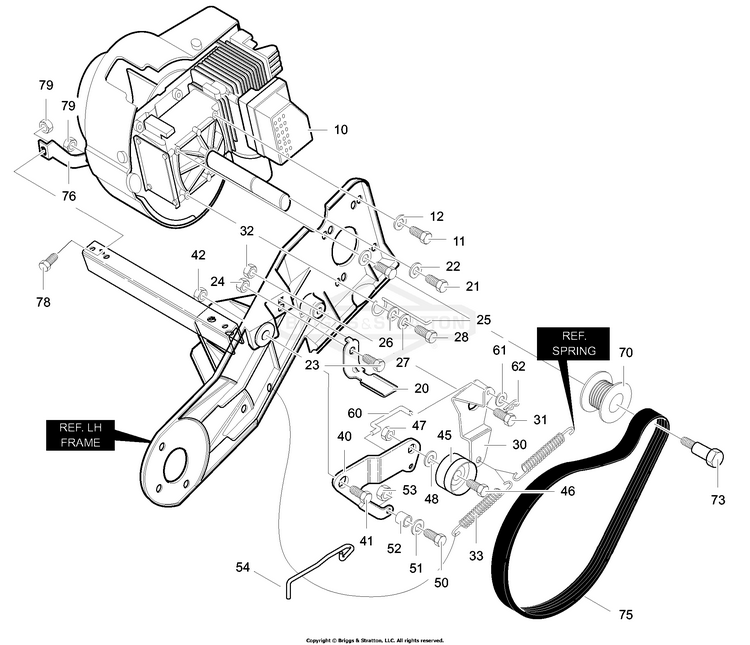

Engine Assembly

...
...
11
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
12
M-BAG,2LBG.38 K25 N BS-1501670MA
...
20
LF PAD, BRAKE BS-333970MA
...
21
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
22
M-BAG,2LBG.38 K25 N BS-1501670MA
...
23
SCREW.25-20X0.62 HHC BS-579052MA
...
24
NUT, 1/4-20 BS-73826
...
25
GUIDE, BELT BS-334079MA
...
26
WASHER BS-703350
...
27
M-BAG,2LBG.38 K25 N BS-1501670MA
...
28
SCREW BS-710312
...
30
ARM, IDLER PIVOT BS-313444MA
...
31
BOLT-SHD.500X.177 .31 BS-333594MA
...
32
IDLER SUPT ASSY 22SD BS-1101253MA
...
33
SPRING, EXTENSION BS-313473MA
...
40
LF ARM, IDLER BS-320077MA
...
41
BOLT-SHD.500X.177 .31 BS-333594MA
...
42
IDLER SUPT ASSY 22SD BS-1101253MA
...
45
PULLEY, IDLER BS-48924MA
...
46
SCREW BS-302637MA
...
47
NUT, HEX, 3/8-16 BS-703996
...
48
WASHER, FLAT BS-301188MA
...
50
SCREW, 1/4-20 X 2.00 BS-180044MA
...
51
WASHER BS-703332
...
52
ROLLER, PINCH BS-1501010MA
...
53
NUT, 1/4-20 BS-73826
...
54
WIRE, BRAKE BS-1501009MA
...
60
ROD, CLUTCH BS-313436MA
...
61
WASHER, FLAT BS-414106MA
...
62
PIN, COTTER BS-121223MA
...
70
PULLEY BS-333784MA
...
73
BOLT, SHOULDER BS-333805MA
...
75
BELT BS-333721MA
...
76
BRACKET, SUPPORT BS-330544
...
78
SCREW 5/16-18 X 0.63 WAHHC BS-48901MA
...
79
IDLER SUPT ASSY 22SD BS-1101253MA
...
--
BOOK, INSTRUCTION BS-F-031069C
