product name

621501x31NB Murray - Single Stage Snow Thrower (2006)

Model: 621501x31NB

Back To Assemblies

Save Part Not Listed?
product name

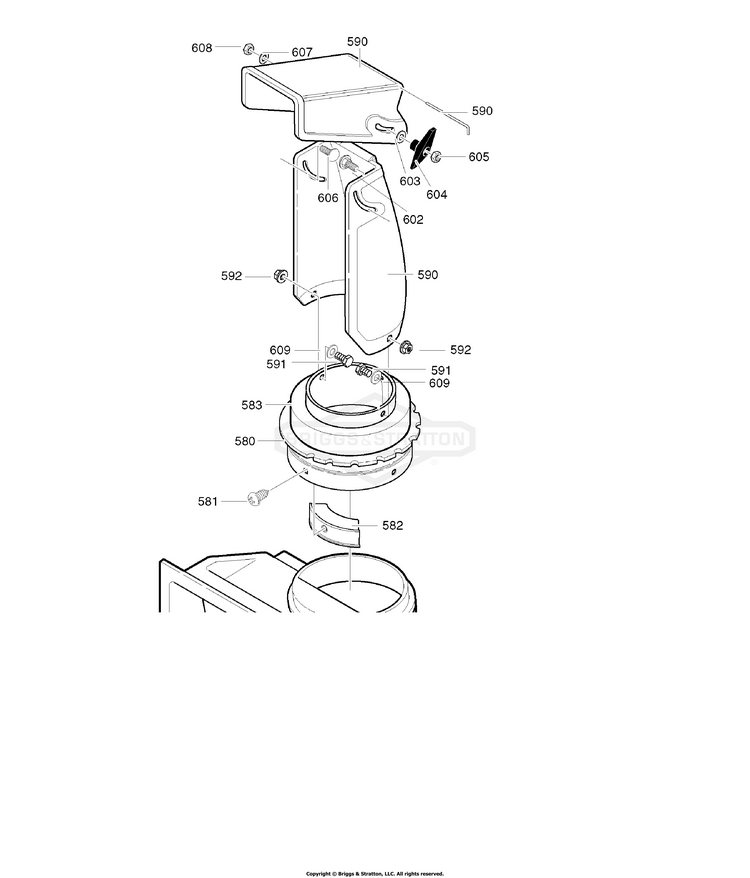

Discharge Chute

...
...
580
RING, CHUTE BS-333860MA
...
581
SCREW, #10 X .50 BS-711752MA
...
582
GUIDE, CHUTE BS-577021MA
...
583
DONUT FOAM BS-762173MA
...
590
CHUTE,LWR 21 653BLK BS-305862MA
...
591
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
592
NUT,25-20 HEX FLG CTR BS-15X143MA
...
600
CHUTE, UPPER BS-314704MA
...
602
BOLT, 5/16-18X1.25 CA BS-302843MA
...
603
WASHER BS-703350
...
604
KNOB, WING 3.00 BS-1501260MA
...
605
HN, 5/16C GR5 YZ BS-7091511SM
...
606
SCREW, 5/16-18X .75SL BS-578088MA
...
607
WASHER BS-703350
...
608
NUT.31-18 HEX CTRLK BS-71391MA
...
609
WASHER BS-703332
