621451x85NB Murray - Single Stage Snow Thrower (2003)

Model: 621451x85NB

Back To Assemblies

Save Part Not Listed?

Popular Parts

Washer, 1/4 BS-703332

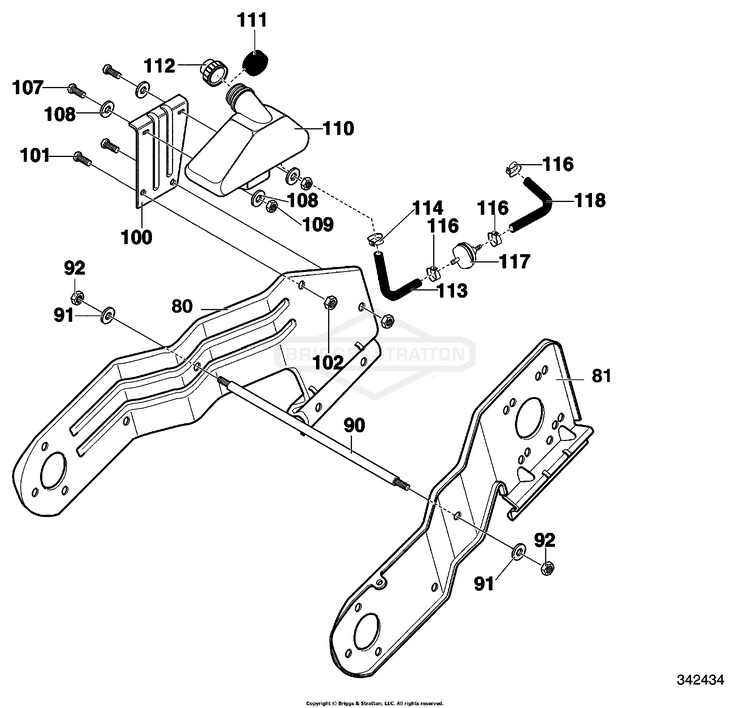

Frame Components Assembly

FRAME, SIDE SUPT STEEL RH BS-760272E701

FRAME, SIDE SUPT STEEL LH BS-760271E701MA

ROD, SUPPORT BS-760168

WASHER, HVSPTLK BS-71063

NUT, 3/8-16 REGHEX BS-71044

100

BRACKET, FUEL TANK BS-333749E701MA

101

SCREW, 1/4-20X.75 BS-180020

102

NUT, 1/4-20 BS-703251

107

BOLT, 1/4-20 X 3/4" G BS-5025010X6SM

108

WASHER BS-703332

109

NUT, 1/4-20 BS-703251

110

TANK, FUEL BS-333739MA

111

RING, FOAM FUEL TANK BS-762224

112

CAP, GAS BS-340299MA

113

TUBING.25X.47X 8.00 G BS-323363MA

114

CLAMP, SCREW TYPE BS-47345MA

116

CLAMP, HOSE BS-323387MA

117

FILTER, Fuel BS-394358S

118

TUBING, 6 IN. BS-335906MA
