621451x85B Murray - Single Stage Snow Thrower (2000)

Model: 621451x85B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

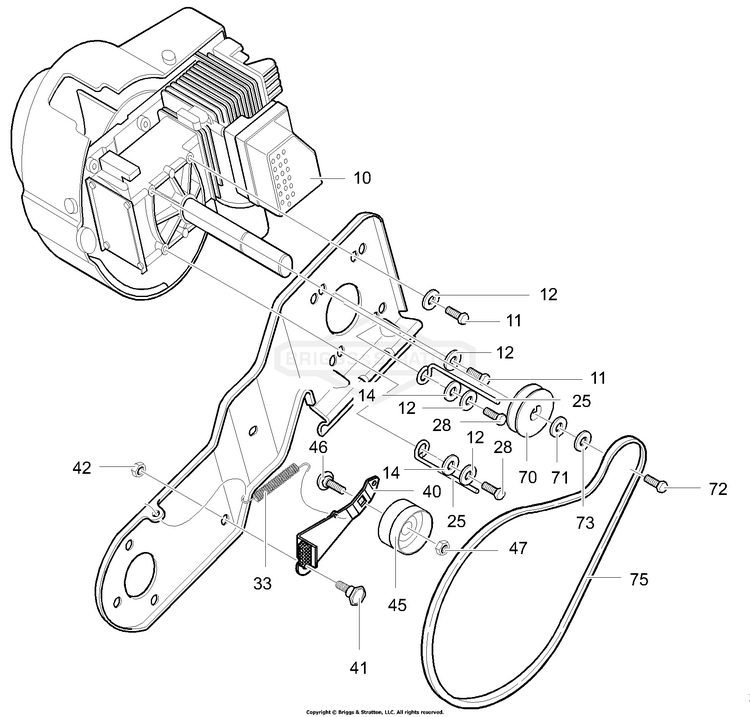

Engine Assembly

...
...
11
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
12
WASHER, SPTLK BS-120638
...
14
WASHER BS-703350
...
25
BELT GUIDE BS-313440MA
...
28
SCREW, 5/16-18 x 1.00 BS-710312
...
33
SPRING, IDLER BRAKE BS-165X146MA
...
40
IDLER ARM BS-1501013MA
...
41
BOLT-SHD.500X.177 .31 BS-333594MA
...
42
IDLER SUPT ASSY 22SD BS-1101253MA
...
45
PULLEY, IDLER BS-48924MA
...
46
BOLT BS-45892MA
...
47
NUT, HEX, 3/8-16 BS-703996
...
70
PULLEY BS-338849MA
...
71
WASHER BS-25840
...
72
SCREW, 5/16-24 x .75 BS-181595
...
73
WASHER BS-120638
...
75
BELT BS-760928MA
