621451x85B Murray - Single Stage Snow Thrower (2000)

Model: 621451x85B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

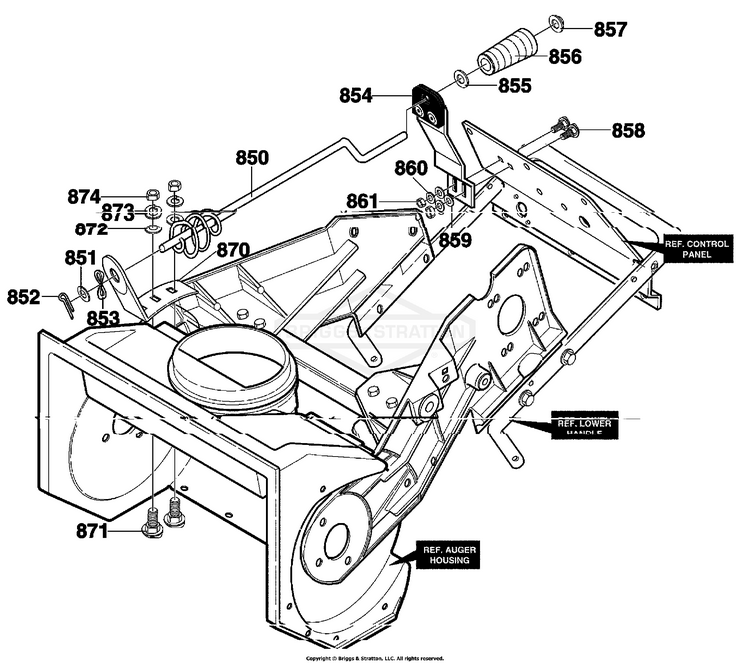

Chute Rod Assembly

...
...
850
ROD, CHUTE BS-337941MA
...
851
WASHER, FLAT .406X.81X.066 BS-71072
...
852
PIN, COTTER BS-71082
...
853
WASHER, CURVED SPRING BS-313431MA
...
854
ASSY, CHUTE CRANK BS-335264MA
...
855
WASHER, FLAT .406X.81X.066 BS-71072
...
856
KNOB, SLEEVE BS-57082MA
...
857
NUT, PUSH, FITS 3/8 D BS-331532MA
...
858
BOLT,1/4-20X.63 CARR. BS-3809
...
859
WASHER, FLAT .344X.69X.065 BS-120393
...
860
WASHER, .31X.58X.08 BS-071060
...
861
NUT, 1/4-20 REGHEX BS-071034
...
870
BRKT, CHUTE ROTATE BS-333946-853
...
871
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
872
WASHER BS-703350
...
873
WASHER, SPTLK .31X.58X.08 BS-071060
...
874
HN, 5/16C GR5 YZ BS-7091511SM
